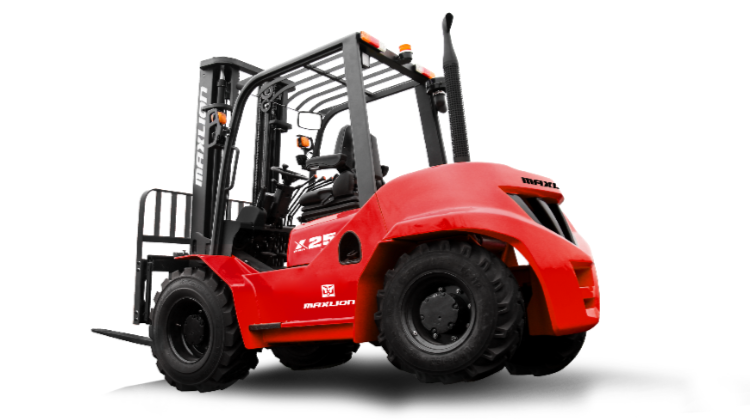

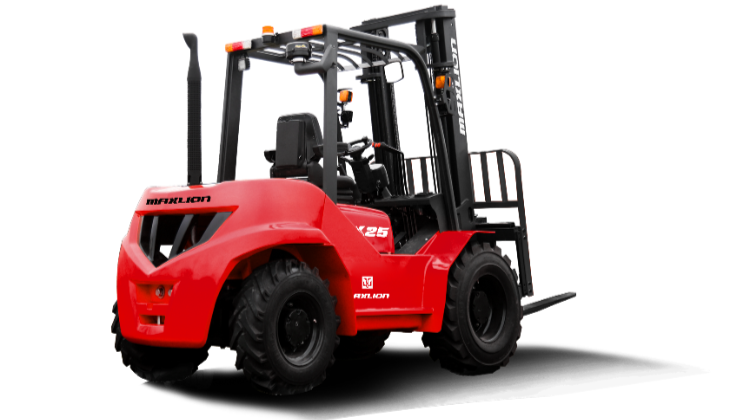

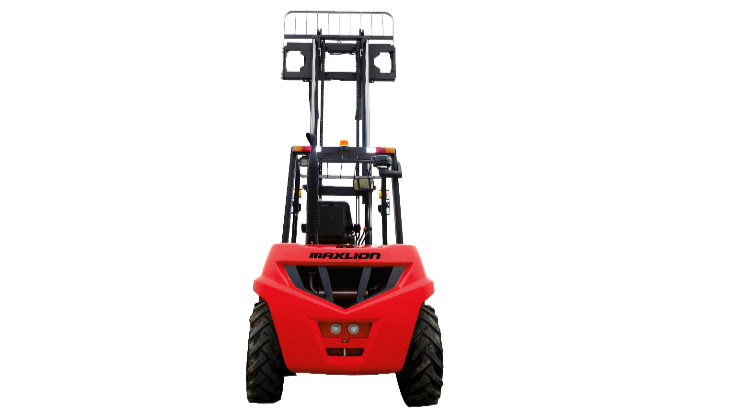

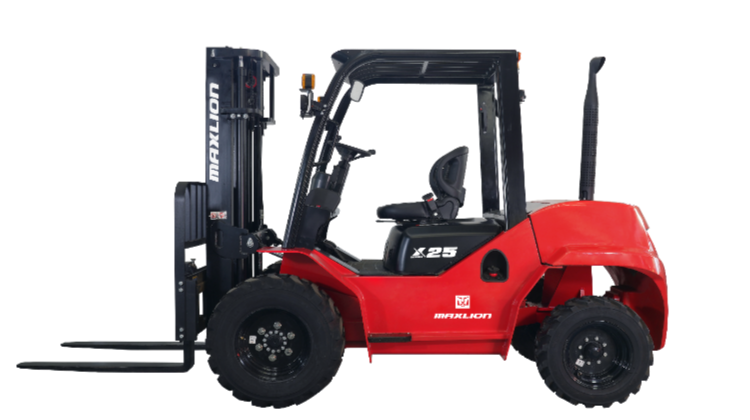

X Series Rough terrain1.8T2.5T3.5T 4WD

X Series Rough Terrain 1.8T2.5T3.5T 4WD

Based on the robust foundation of Rough Terrain forklifts, the compact tele-truck takes versatility to a whole new level by integrating a cutting-edge reach function. Adaptable to various industries like mining and agriculture with versatile attachments like loading buckets!

Simple, Solid, Durable

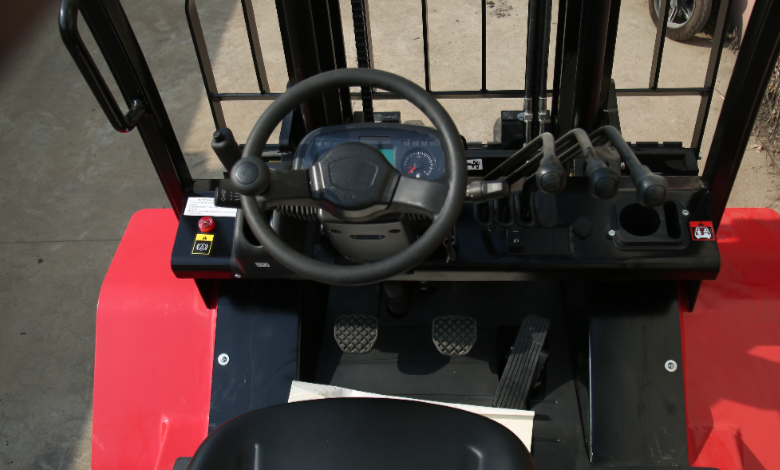

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

On-site show

Equipment Application

"Maxlion Rough Terrain Forklifts are engineered to excel in challenging terrains and demanding outdoor settings. Renowned for their rugged design and superior capabilities, these forklifts are tailored to provide exceptional performance and versatility across a spectrum of industrial and outdoor applications"

Features

Comfortable Ergonomics Terrain Versatility Mastery Simple, Solid, Durable Premium Exterior Design

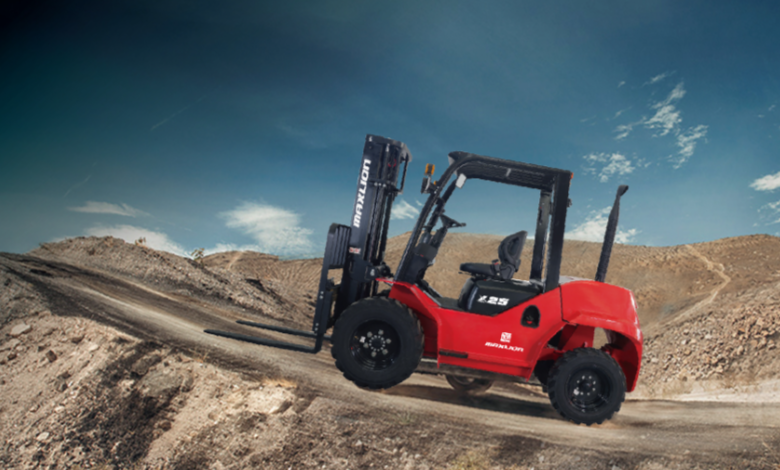

Superb off-road capability, Max Gradeability(Laden): 45%-50%

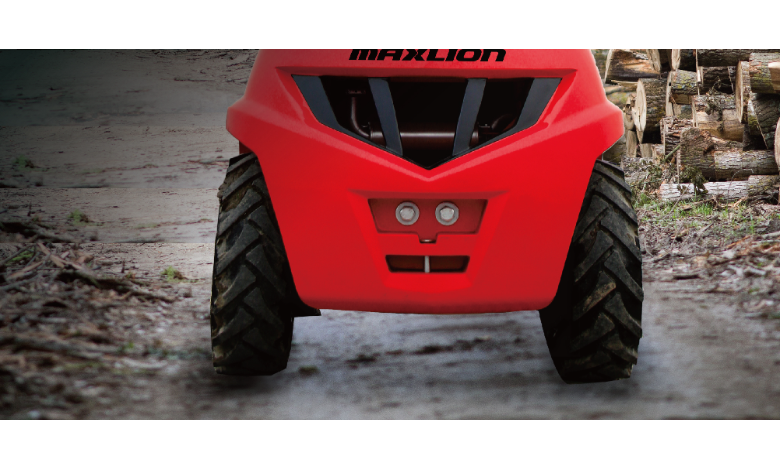

Ground clearance 220mm

Patented self-designed axle, compact size and wide turning angel

Simple operation and easy maintenance

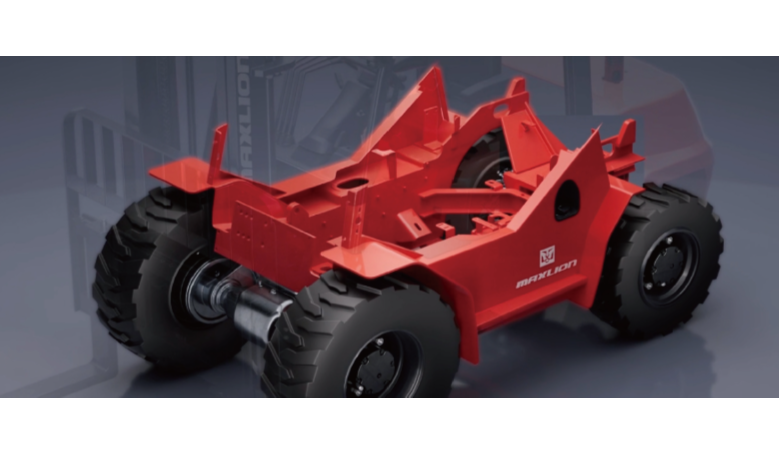

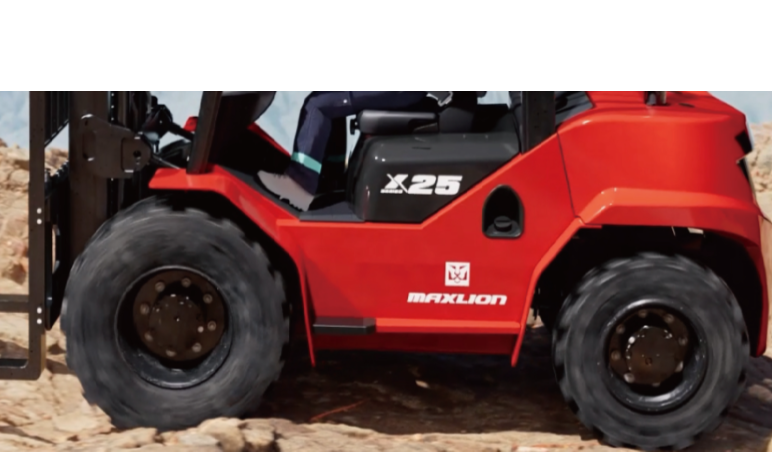

Specialized strong off-road chassis systems and high-traction tires

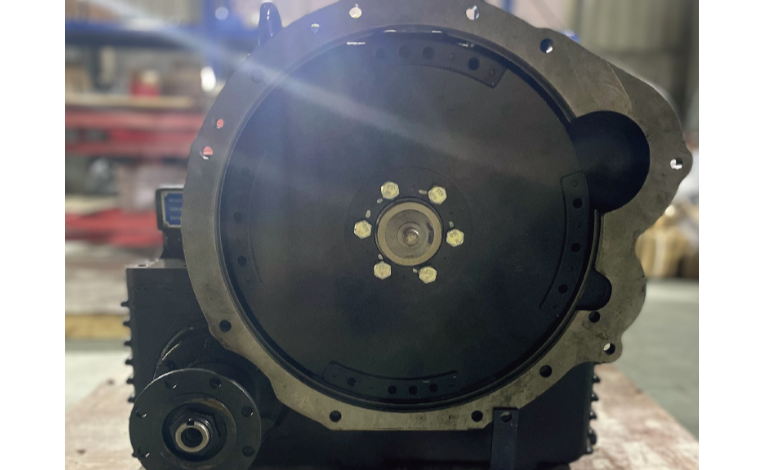

Quality mature components ensure durable performance

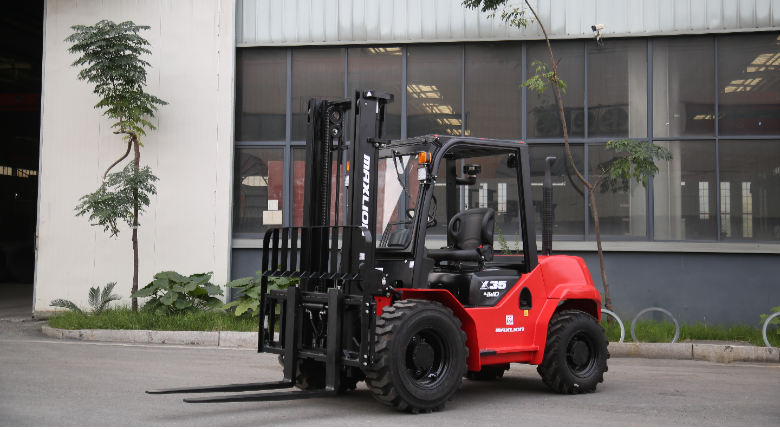

Modern design for an appealing appearance.

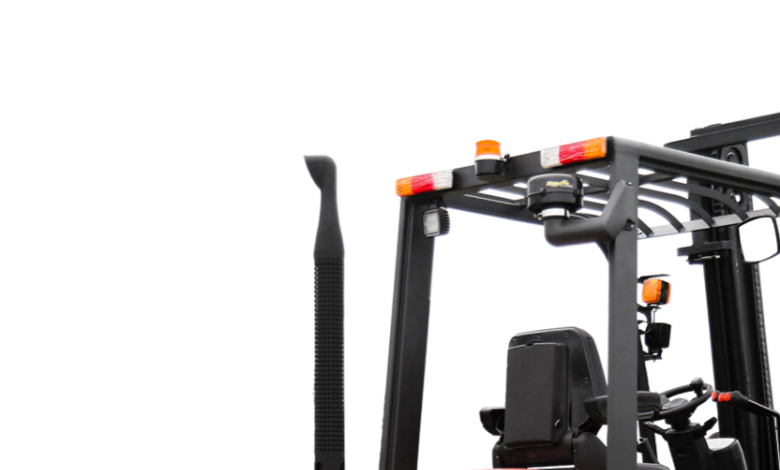

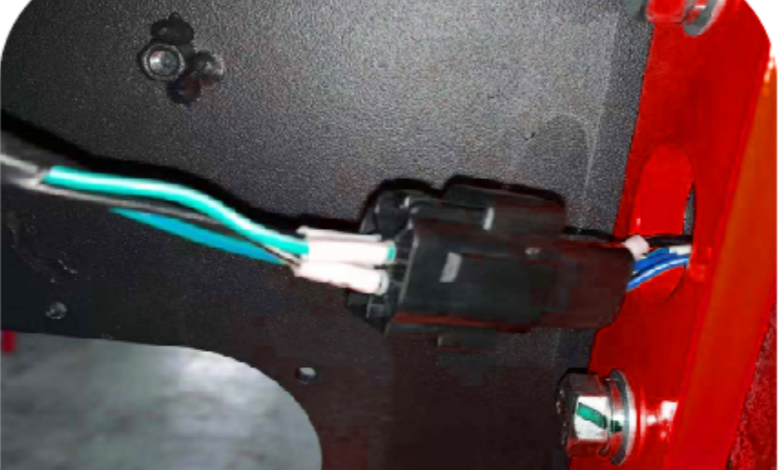

LED lights, USB port, Waterproof connectors

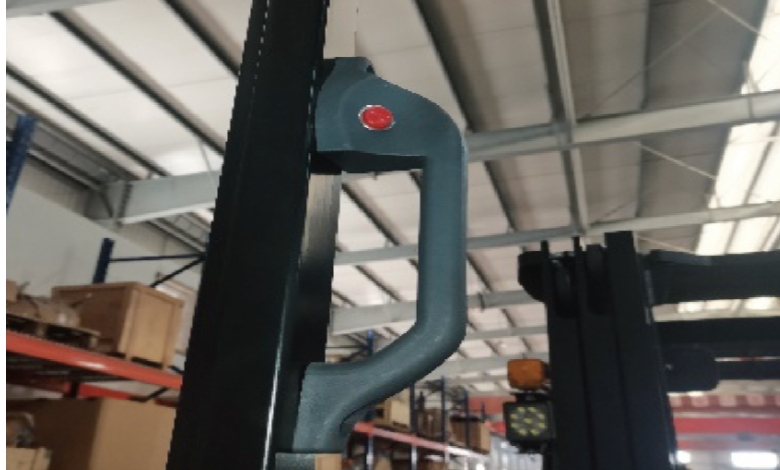

Rear hand grip with horn

Application

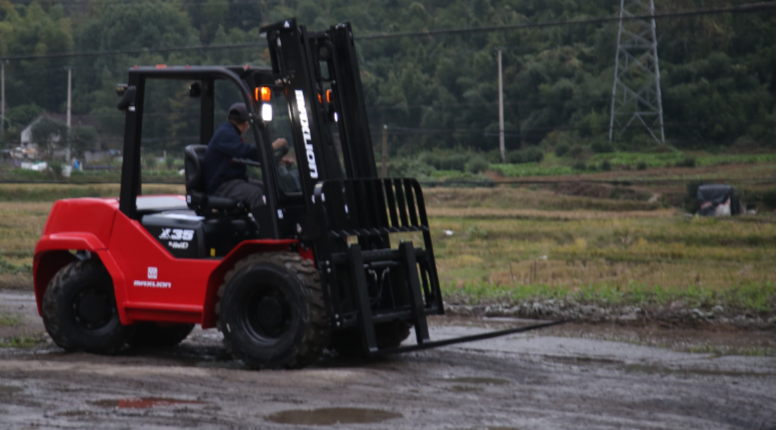

Forestry wood & Agriculture

Construction & Mining

Livestock Industry

Tech Specs

Characteristics

Model			R4D18	R4D25	R4D35
Power type			Diesel
Optional engine			YANMAR 98、MITSUBISHI S4S、LS L4CRV-T6 EUV、XINCHAI 4D29X41-030、Kubota V2403
Rated capacity			1800kg	2500kg	3500kg
Load centre			500mm
Lift height			3000mm
Overall Dimension	Length(without fork)		3070mm	3070mm	3085mm
Width			1450mm	1450mm	1600mm
Height when mast lowered			2230mm	2230mm	2325mm
Height to safeguard			2260mm	2260mm	2280mm
Speed	Travel(Unladen/Laden)	km/h	20/19	20/19	19/18
Lifting(Unladen/Laden)		mm/sec	560/540	560/540	460/440
