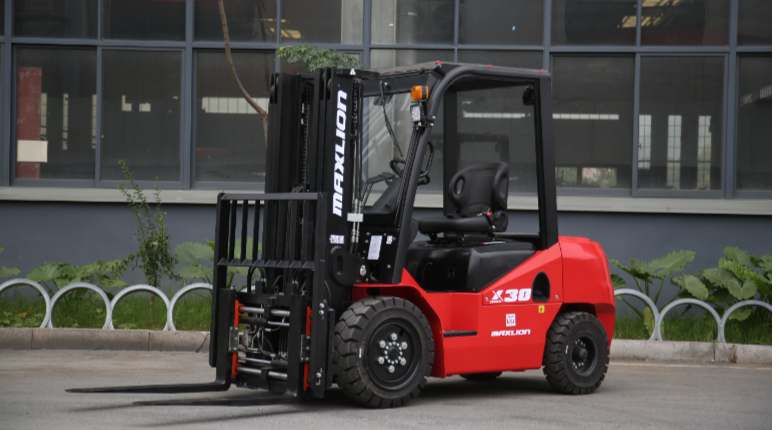

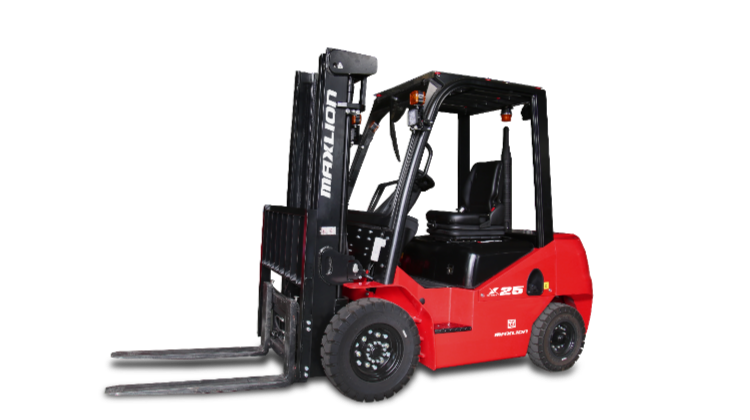

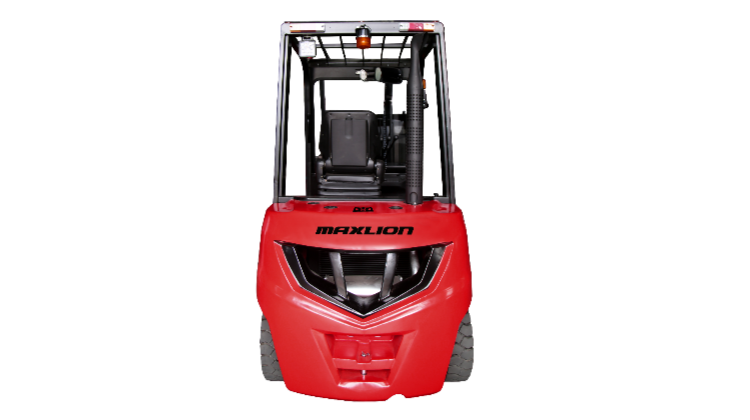

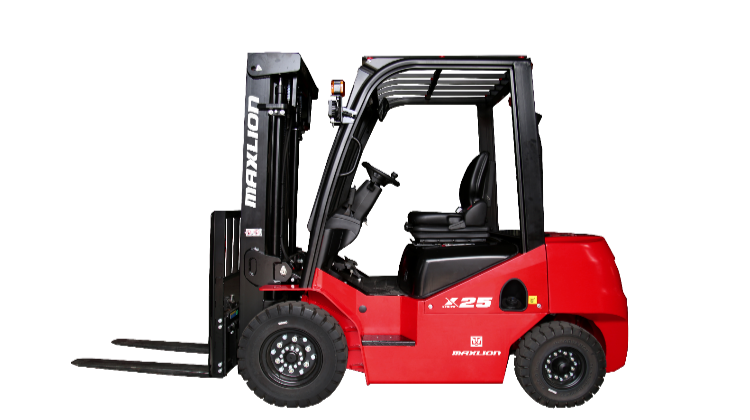

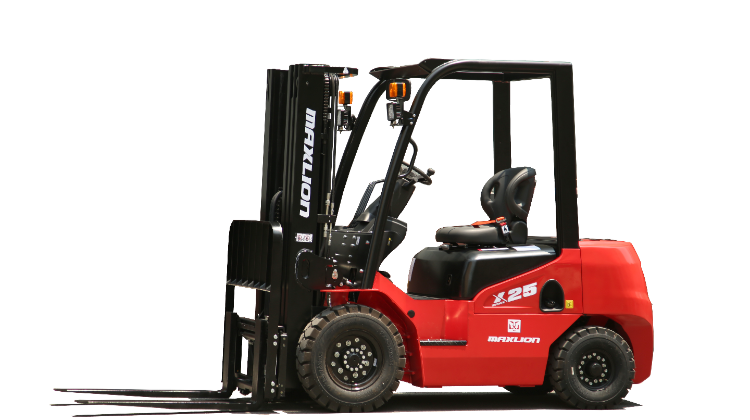

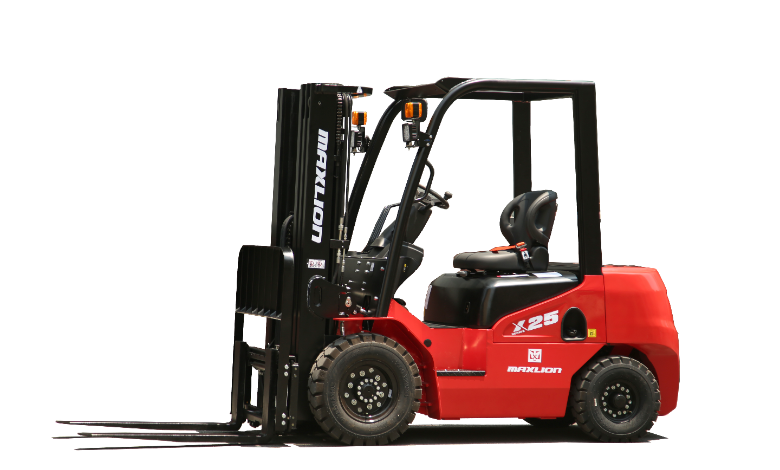

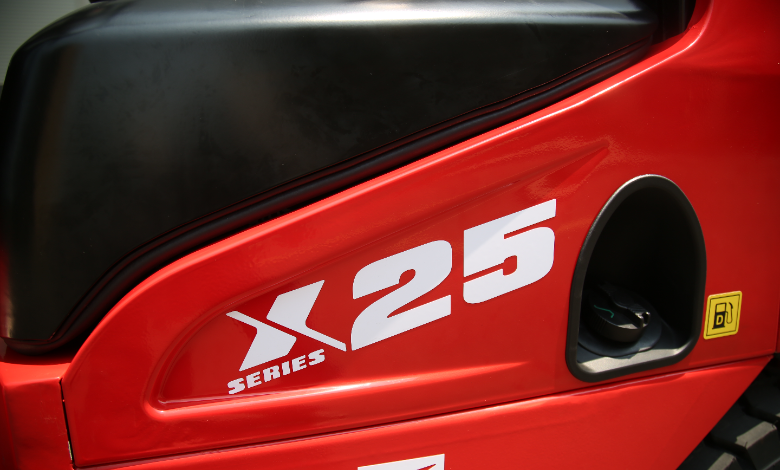

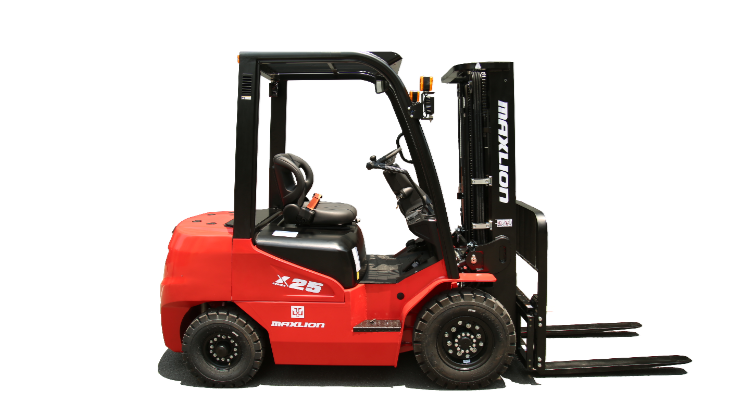

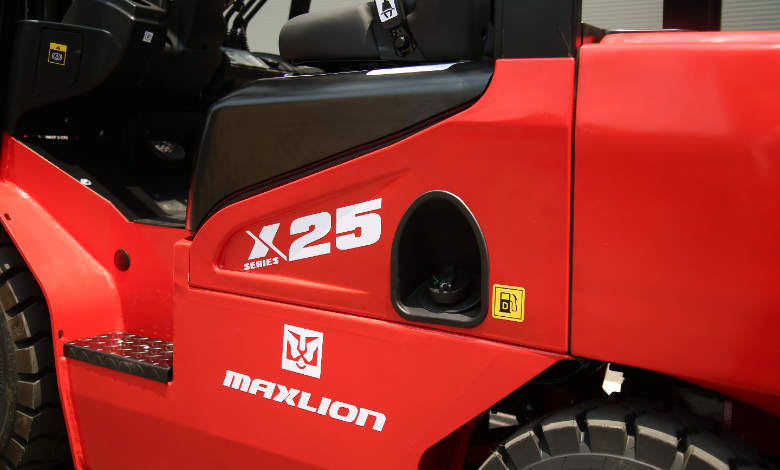

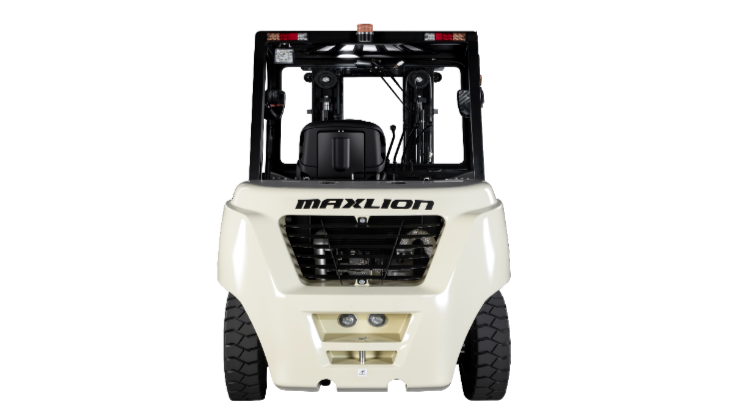

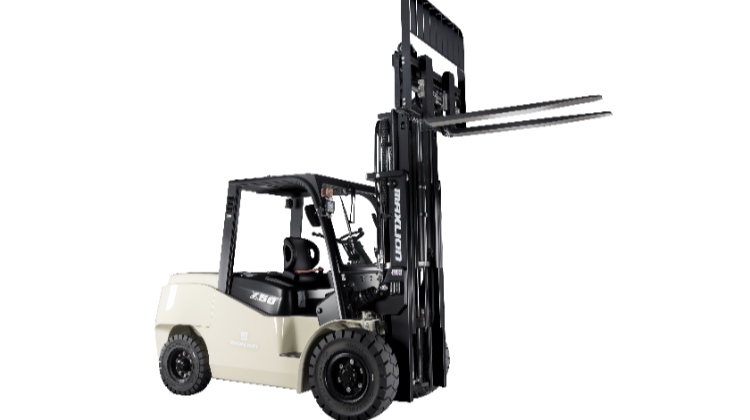

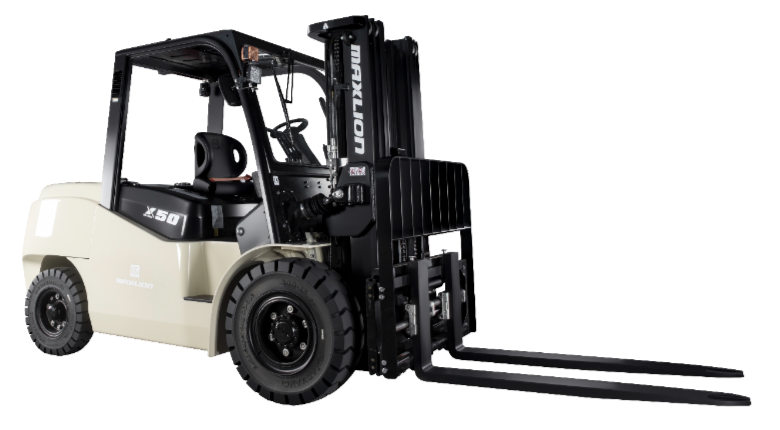

X Series Diesel 1.8-3.8T

Maxlion independently developed the new product, an innovative line of internal combustion counterbalance forklifts, integrating cutting-edge technologies from its oiginal products. This revamped series prioritizes enhanced aesthetics, energy efficiency, eco-friendliness, operator comfort, security, and reliability. These advancements aim to position the new series as a top-tier forklift range meeting diverse operational needs on a global scale.

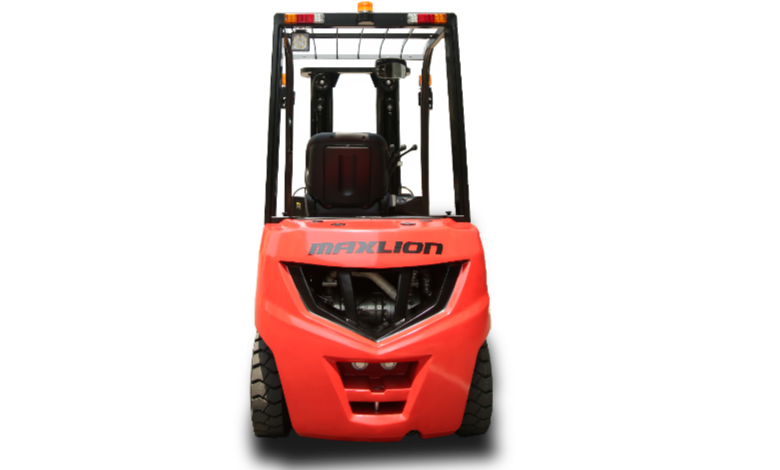

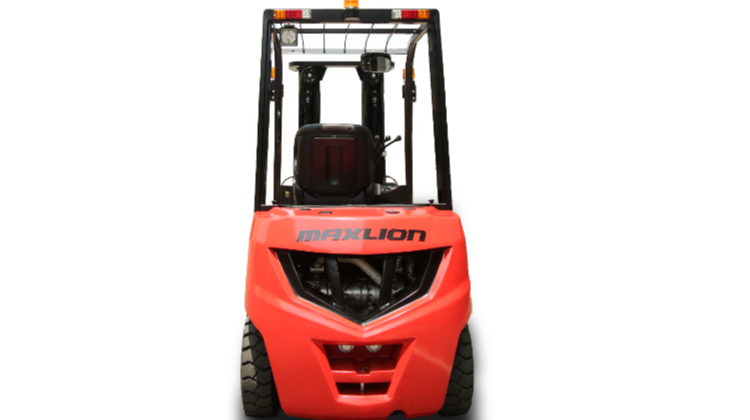

Simple, Solid, Durable

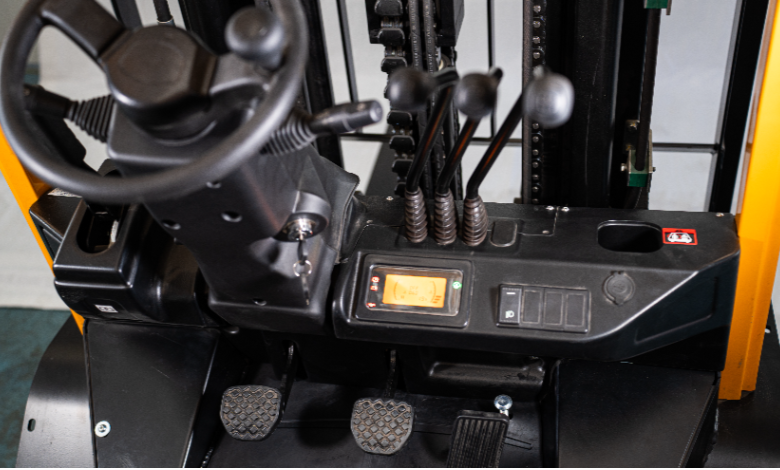

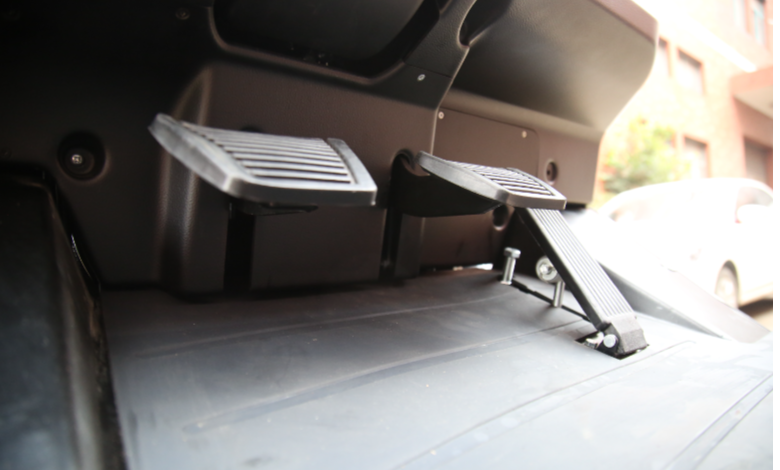

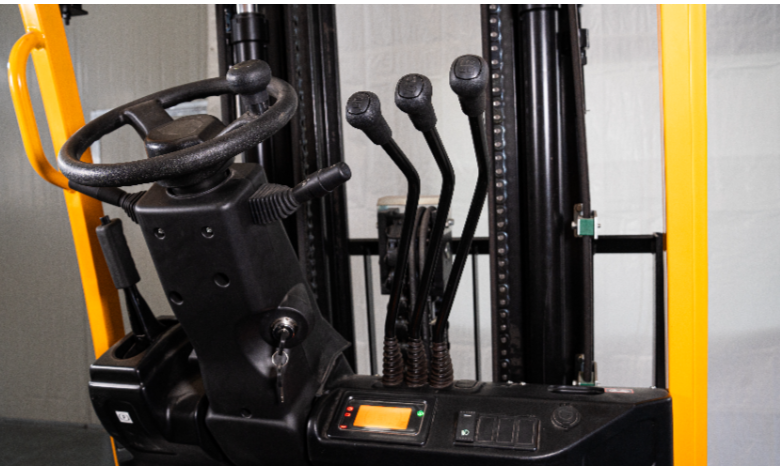

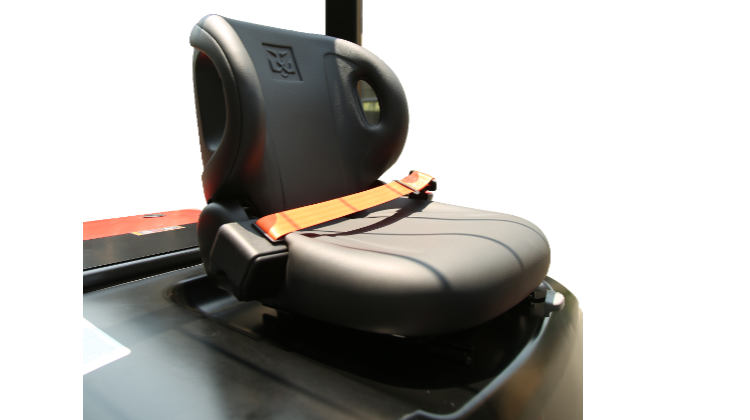

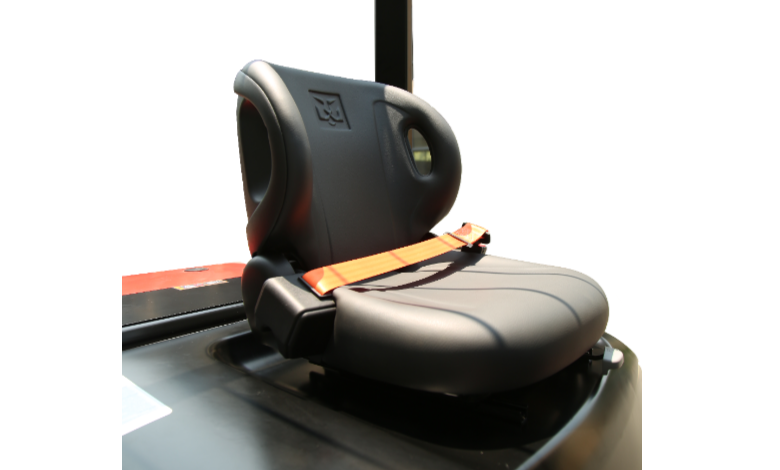

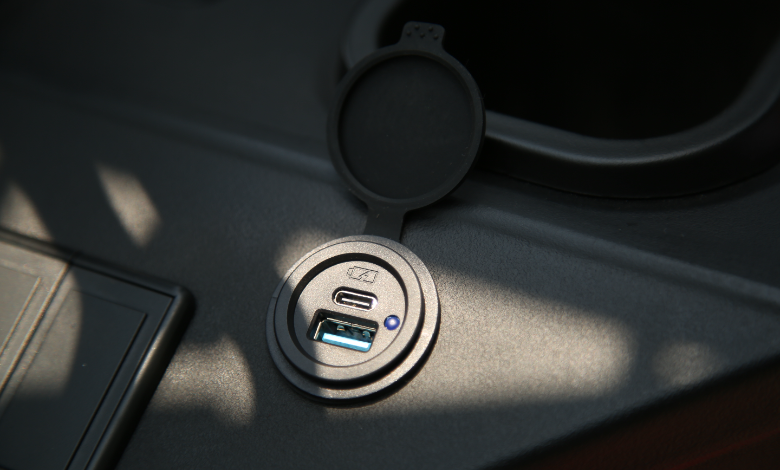

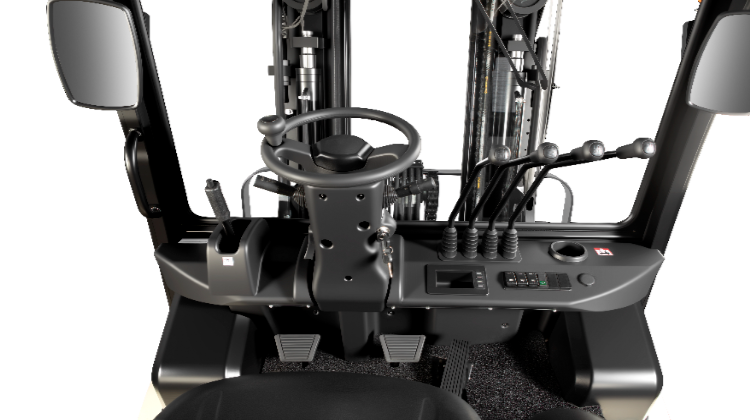

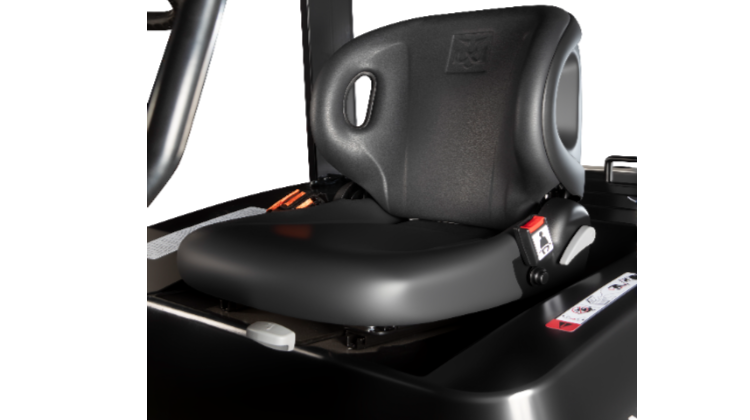

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

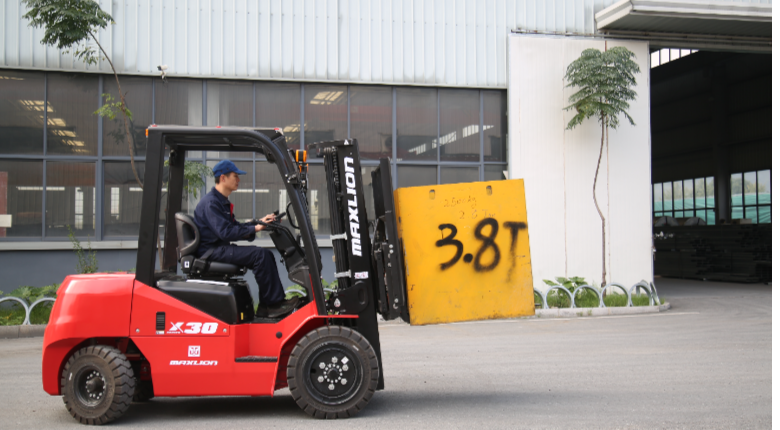

On-site show

Equipment Application

Features

Ergonomic Design for Comfort Simple, Solid, Durable High Cost-effectiveness

Implements strict cost control of high-quality core components

Mature supply chain ensures premium configuration while maintaining cost-effectiveness

Application

Retail & Wholesale

Warehousing & Logistics

Manufacturing

Food Beverage

Forestry wood & Agriculture

Construction & Mining

Ports & Terminals

Livestock Industry

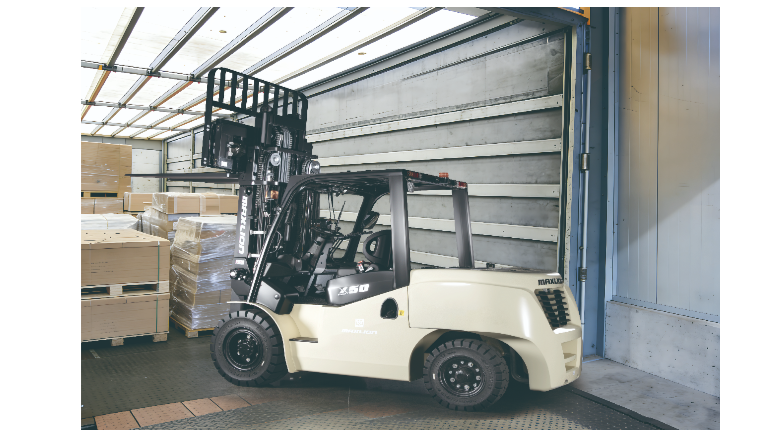

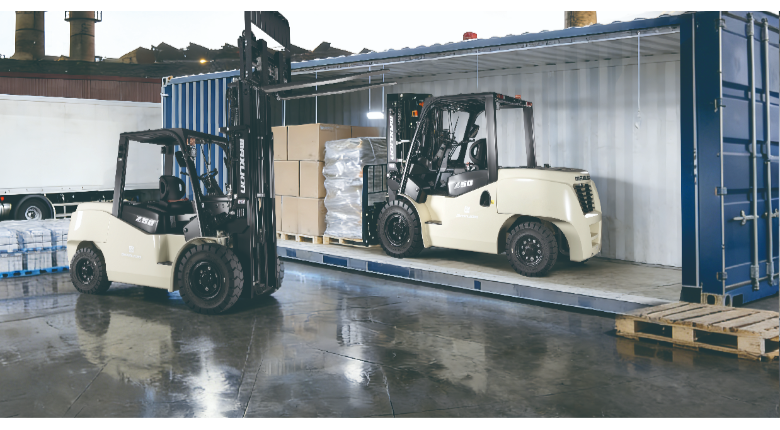

Forklift Container Unloading

Tech Specs

Characteristics

Model			FD18	FD25	FD30	FD35	FD38
Power type			Diesel

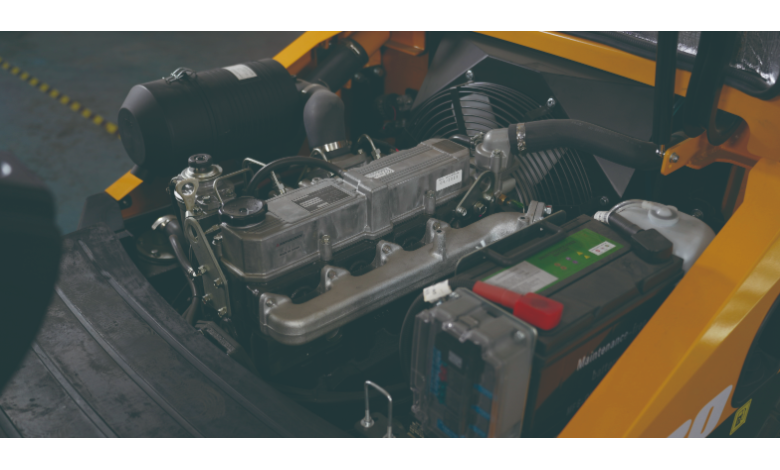

Optional engine			LS L4CRV-T6 (EUV/EPA4) 、Yanmar 4TNE98、Mitsubishi S4S
Rated capacity			1800kg	2500kg	3000kg	3500kg	3800kg
Load centre			500mm
Min. turning radius			2080mm	2230mm	2450mm	2520mm	2545mm
Lift height			3000mm
Overall Dimension	Length(without fork)		2285mm	2620mm	2700mm	2770mm	2798mm
Width			1090mm	1150mm	1210mm	1210mm	1210mm
Height when mast lowered			2010mm	2010mm	2075mm	2150mm	2150mm
Height to safeguard			2105mm	2180mm	2205mm	2205mm	2205mm
Speed	Travel(Unladen/Laden)	km/h	17/16	18/17	19/18	19/18	19/17
Lifting(Unladen/Laden)	mm/sec		550/520	560/540	460/440	370/360	370/340
