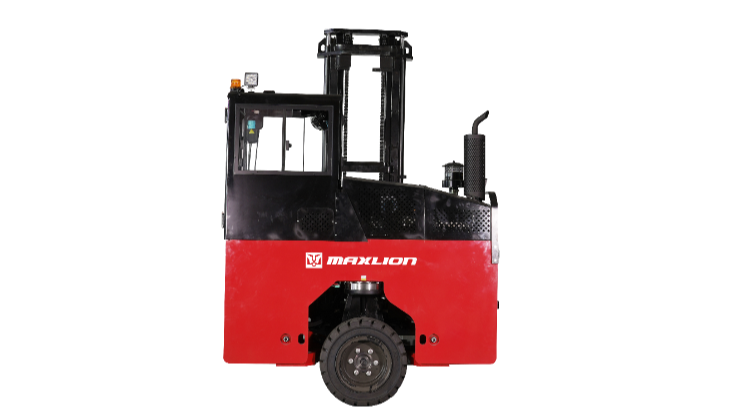

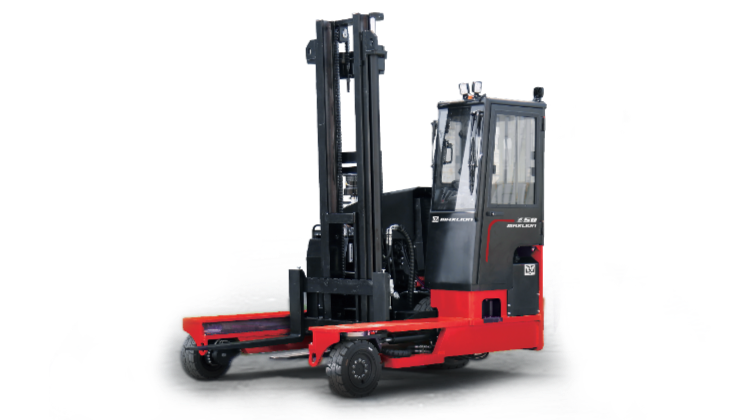

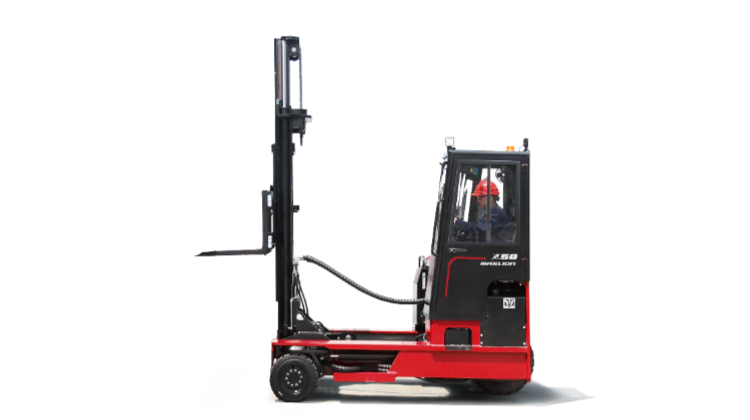

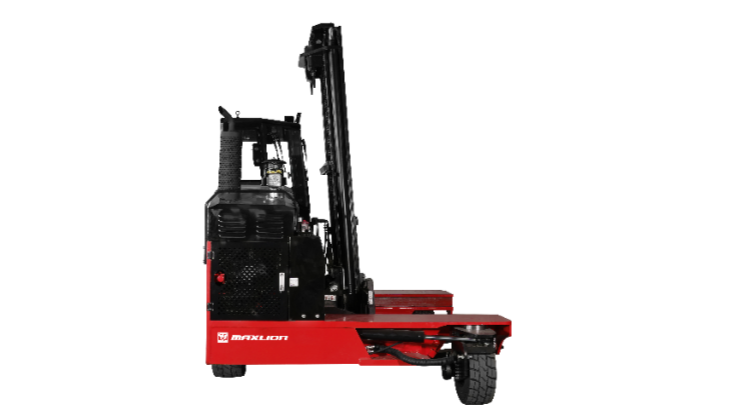

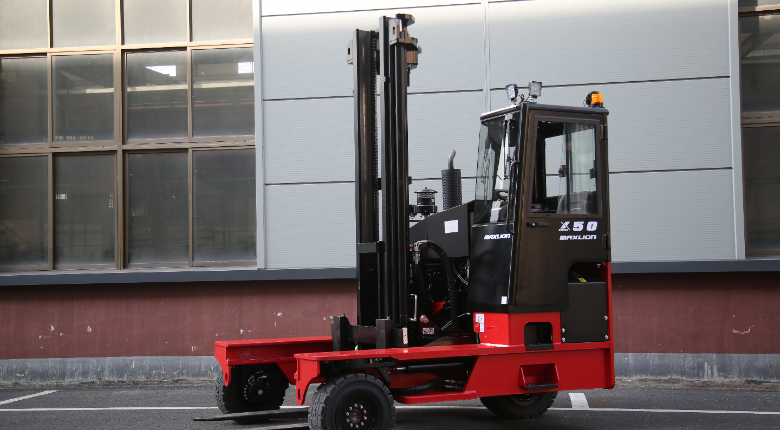

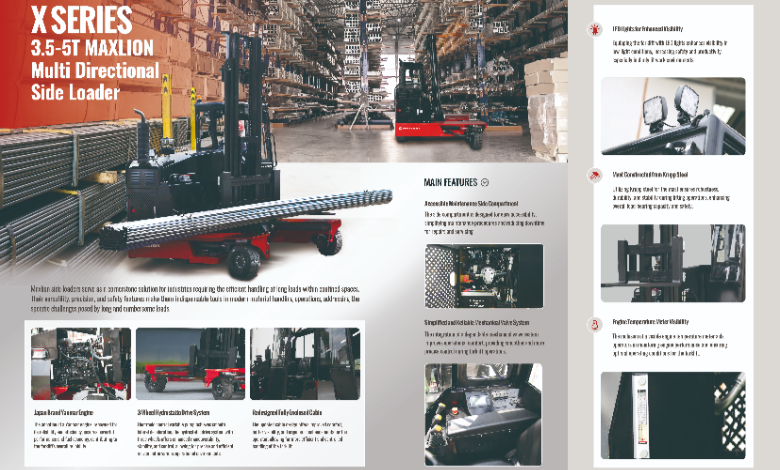

X Series 3.5-5.0T Multi-directional Side Loader

Maxlion Multi-Side Loader

Simple, Solid, Durable

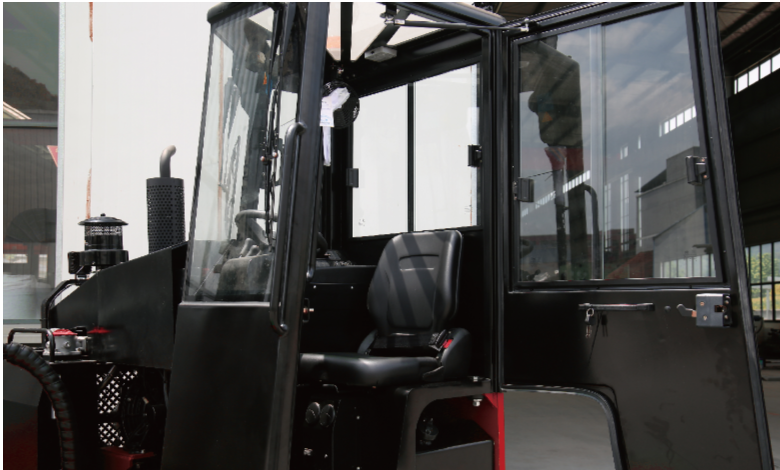

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

On-site show

Equipment Application

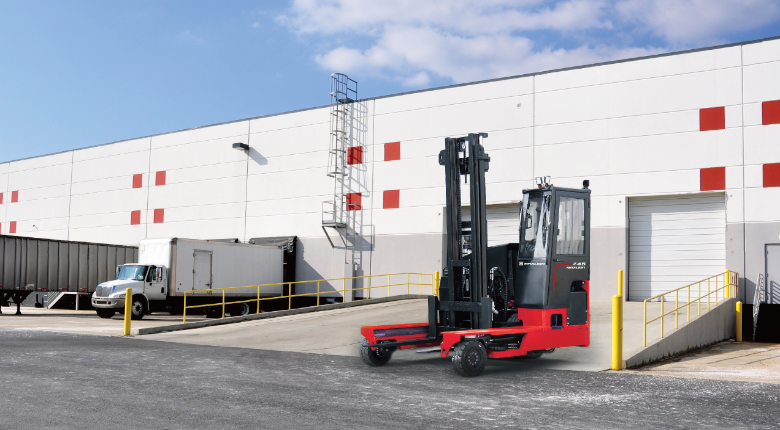

Maxlion side loader forklifts represent a pinnacle in materialhandling innovation, particularly when it comes to managing lengthyand challenging loads within limited space environments.

Features

Simple, Solid, Durable Efficient Handling of Long Loads High Space Utilization Electronic Control System Reliable Mechanical Valve Operation Limited Brand Competition Lead Time Advantage

Simple operation and easy maintenance

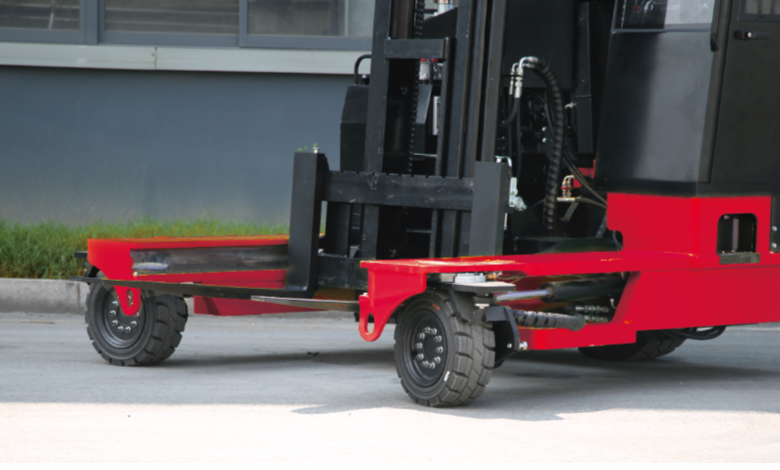

Heavy robust chassis system enhanced stability

Quality mature components ensure durable performance

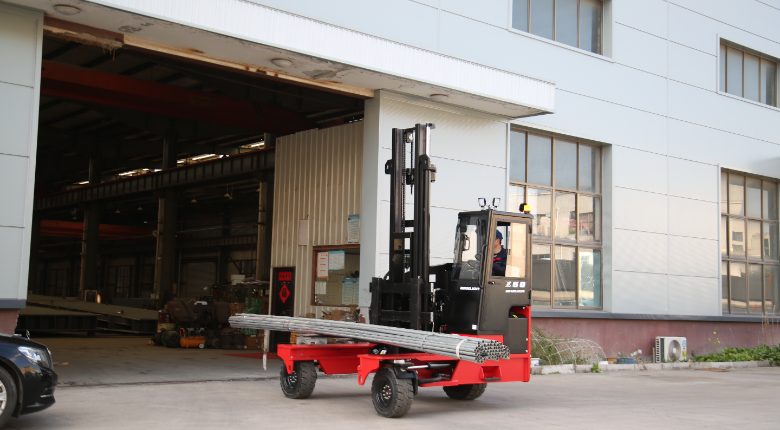

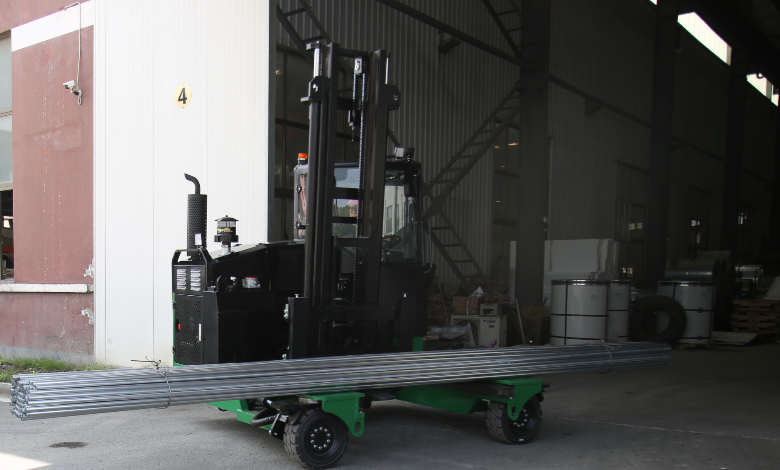

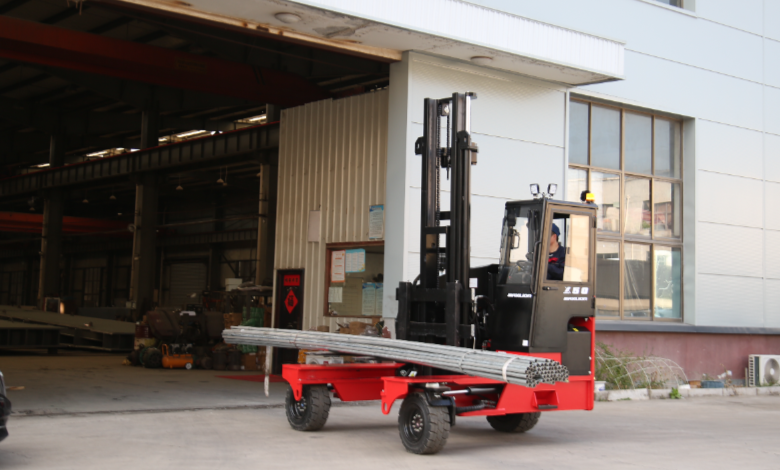

Excel in handling lengthy and awkward loads: steel bars, timber, tubing, or lengthy products

The unique design allows lateral movement, enabling operation within narrow aisles

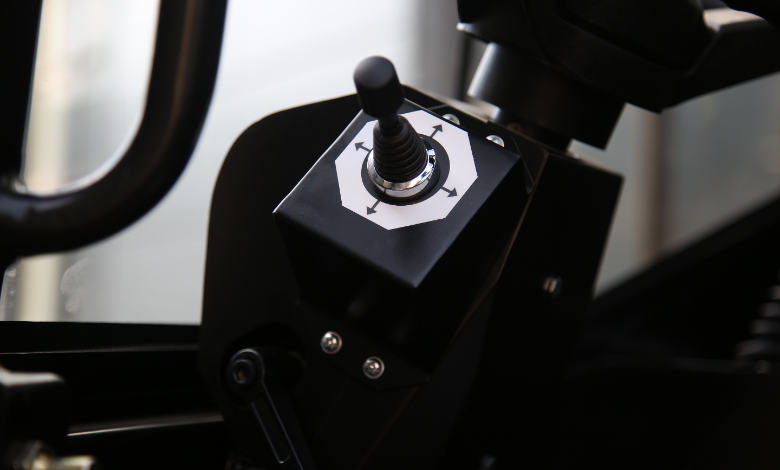

Electronic program enabling inching movement, greater precision, energy efficiency

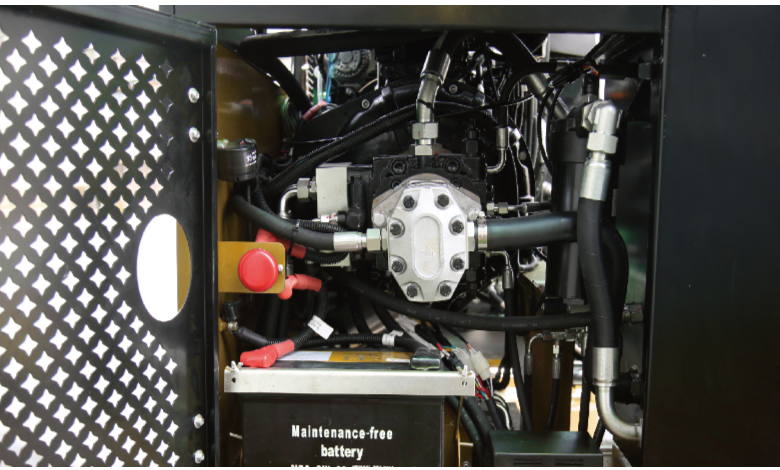

Mechanical valve ensures simple, precise, and reliable hydraulic operation

Application

Warehousing & Logistics

Manufacturing

Food Beverage

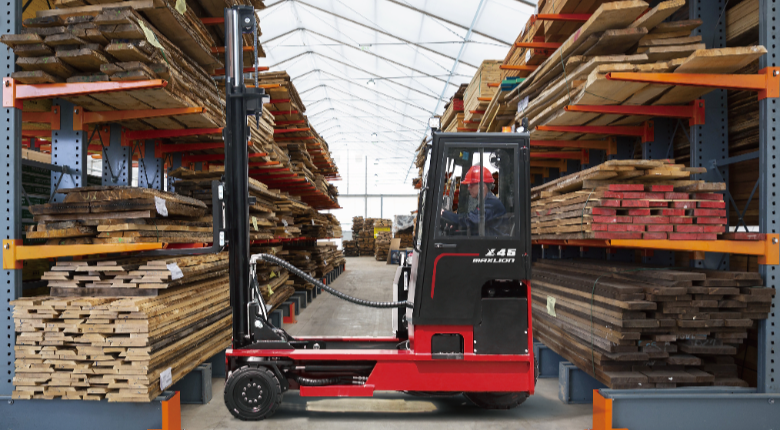

Forestry wood & Agriculture

Construction & Mining

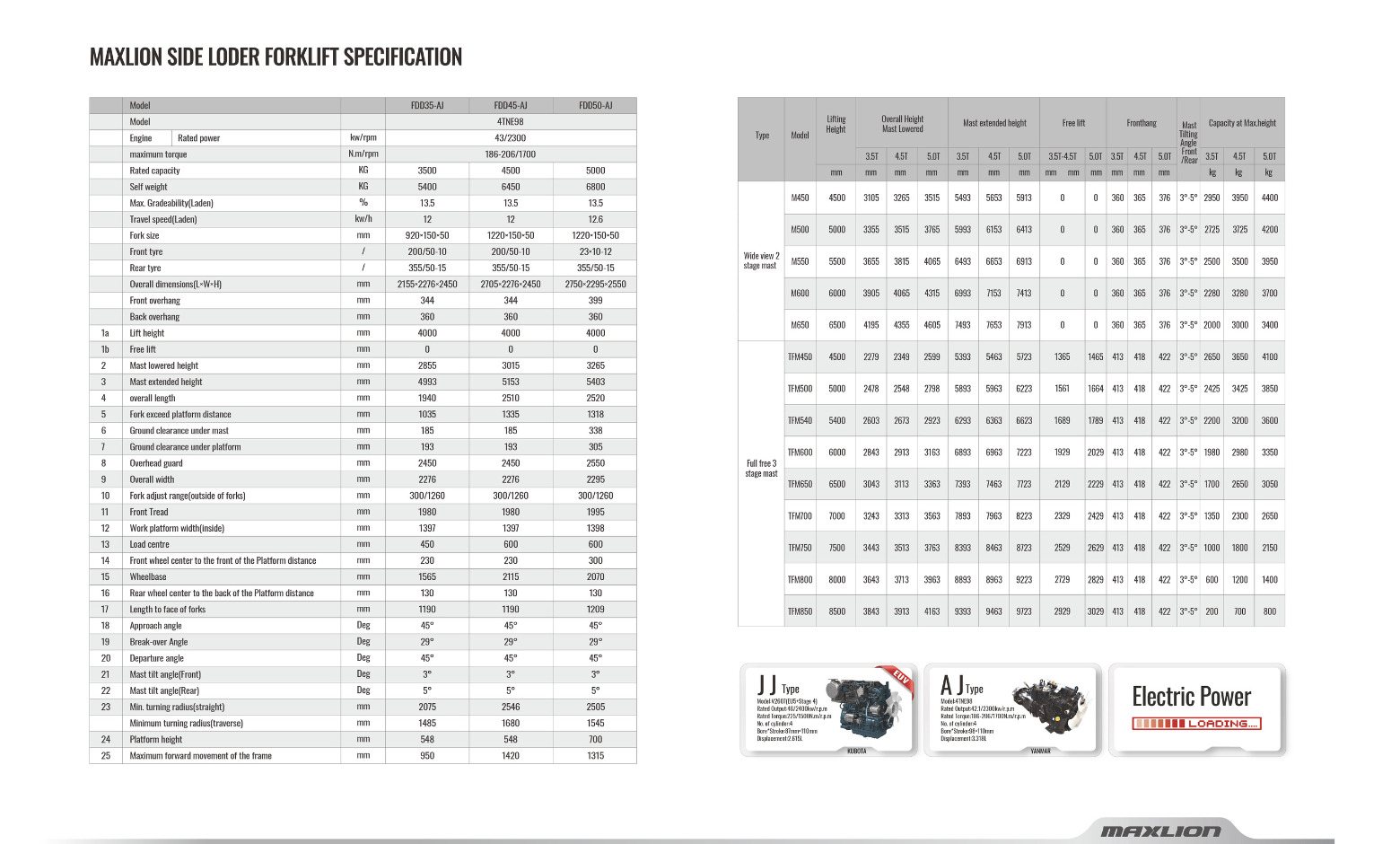

Tech Specs

Characteristics

Model	FDD35	FDD45	FDD50
Power type	Diesel
Optional engine	Yanmar 4TNE98/Kubota V2607-T EU5
Lift height	4000mm	4000mm	4000mm
Mast lowered height	2855mm	3015mm	3265mm
Mast extended height	4993mm	5153mm	5403mm
overall length	1940mm	2510mm	2520mm
Ground clearance under mast	185mm	185mm	338mm
Overhead guard	2450mm	2450mm	2550mm
Overall width	2276mm	2276mm	2295mm
Fork adjust range(outside of forks)	300/1260mm	300/1260mm	300/1260mm
Load centre	450mm	600mm	600mm
Length to face of forks	1190mm	1190mm	1209mm
Approach angle	45º	45º	45º
Min. turning radius(outside)	2075mm	2546mm	2505mm
Forward distant	950mm	1420mm	1315mm
Travel speed(Laden)	12km/h	12km/h	12.6km/h
Max. Gradeability(Laden)	13.5%	13.5%	13.5%

Video

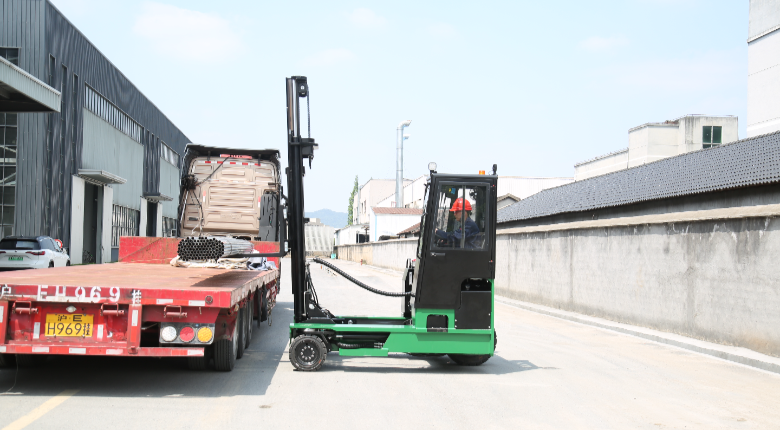

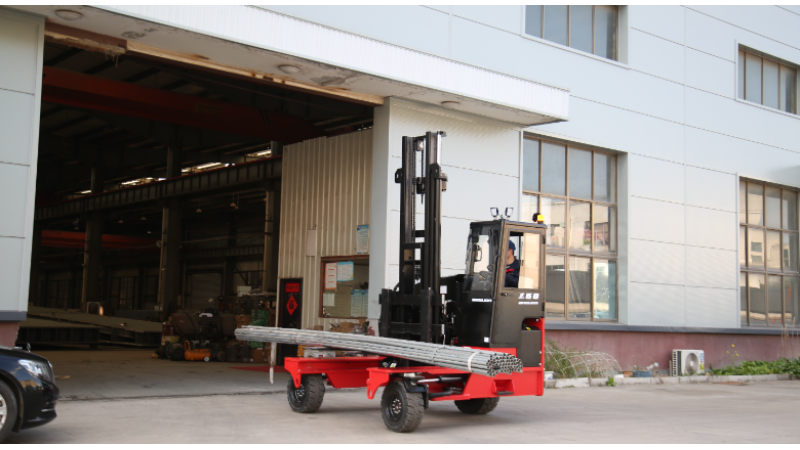

On-site Showcase
