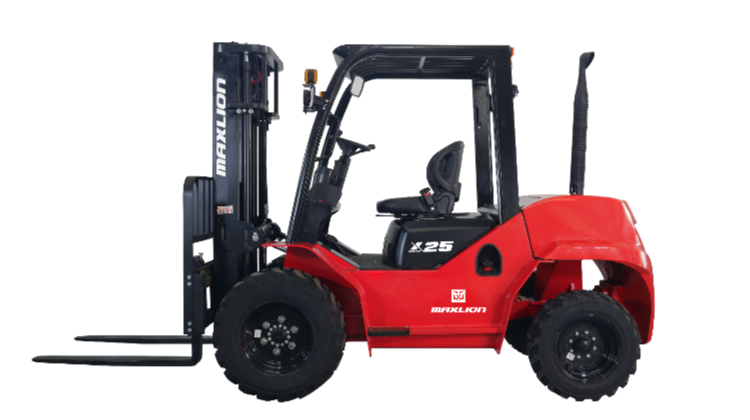

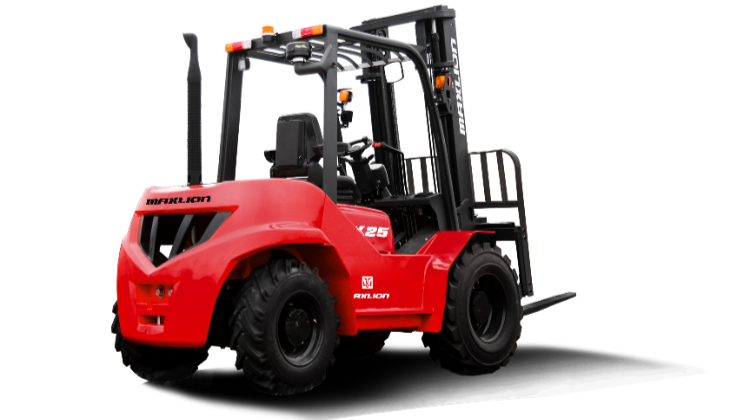

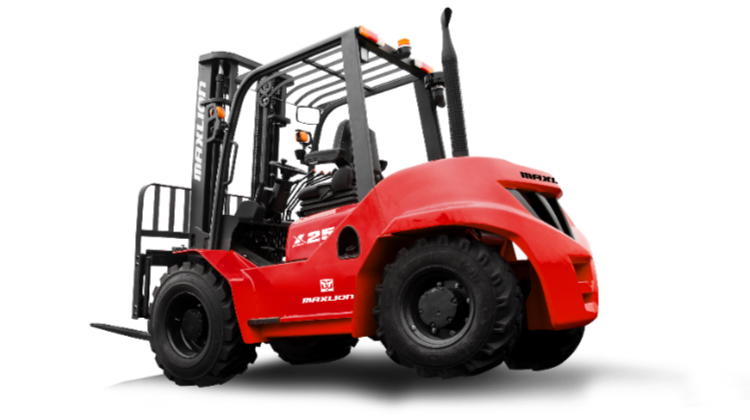

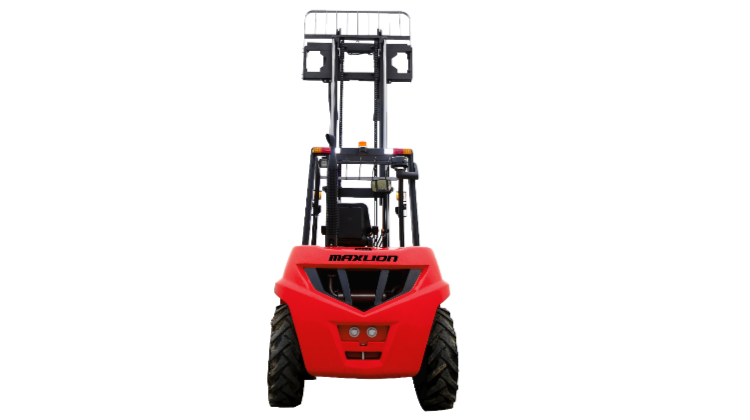

X Series Rough terrain 1.8T2.5T3.5T 2WD

X Series Rough Terrain 1.8T2.5T3.5T 2WD

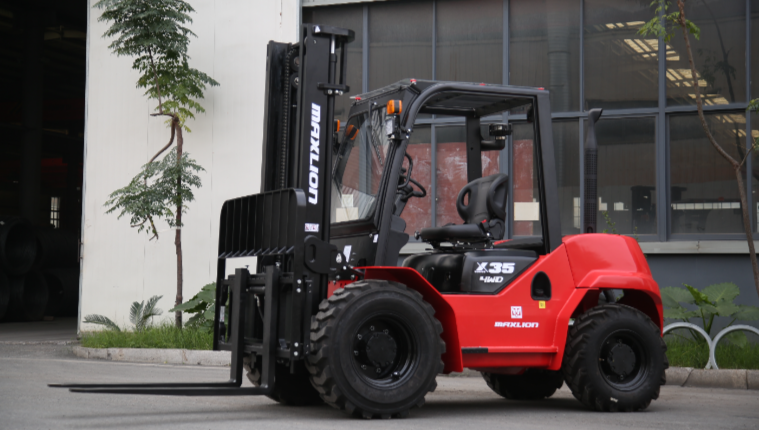

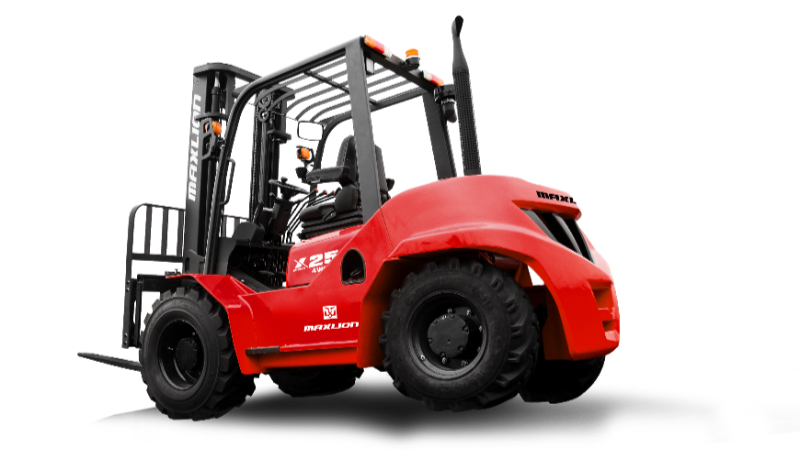

Maxlion rough terrain forklift is a tough,compact forklift with a 2WD system.The forklift is based on conventional forklift, but built for rough terrain performance.

Simple, Solid, Durable

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

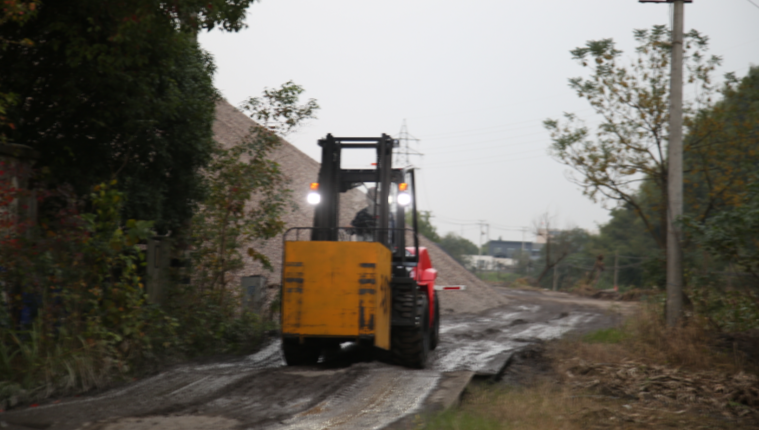

On-site show

Equipment Application

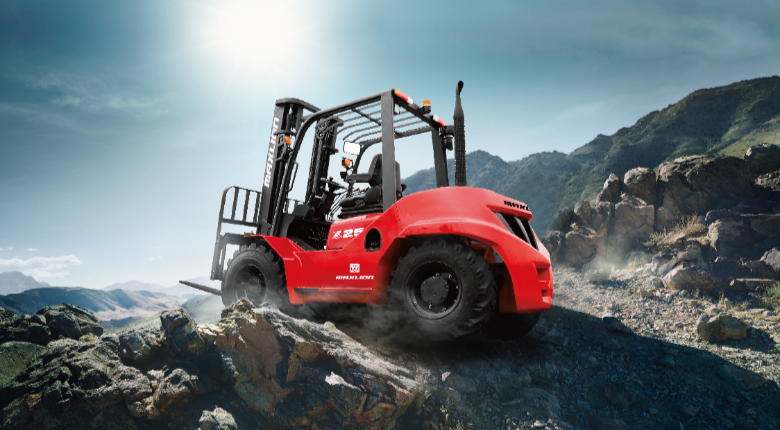

"Maxlion Rough Terrain Forklifts are engineered to excel in challenging terrains and demanding outdoor settings. Renowned for their rugged design and superior capabilities, these forklifts are tailored to provide exceptional performance and versatility across a spectrum of industrial and outdoor applications"

Features

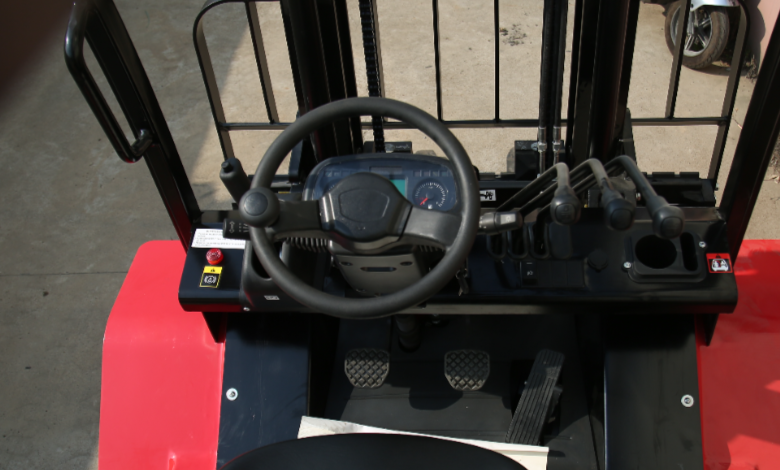

Comfortable Ergonomics Simple, Solid, Durable Terrain Versatility Mastery Premium Exterior Design

Simple operation and easy maintenance

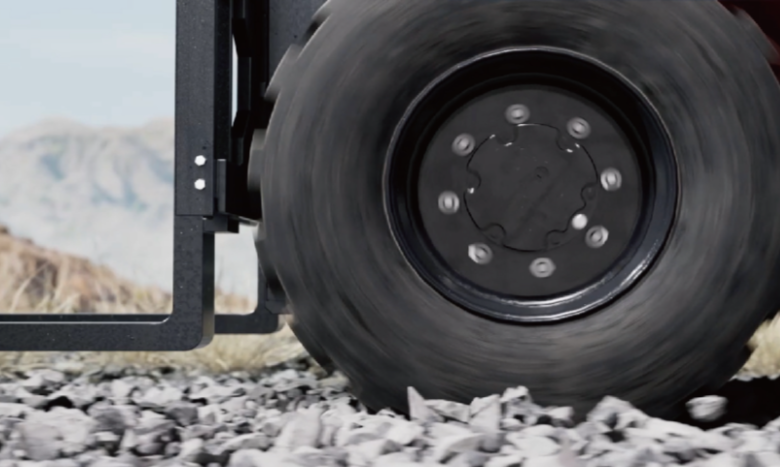

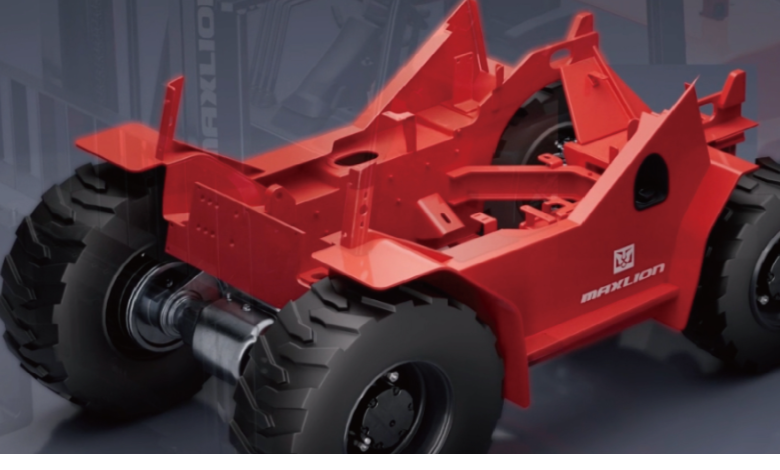

Specialized strong off-road chassis systems and high-traction tires

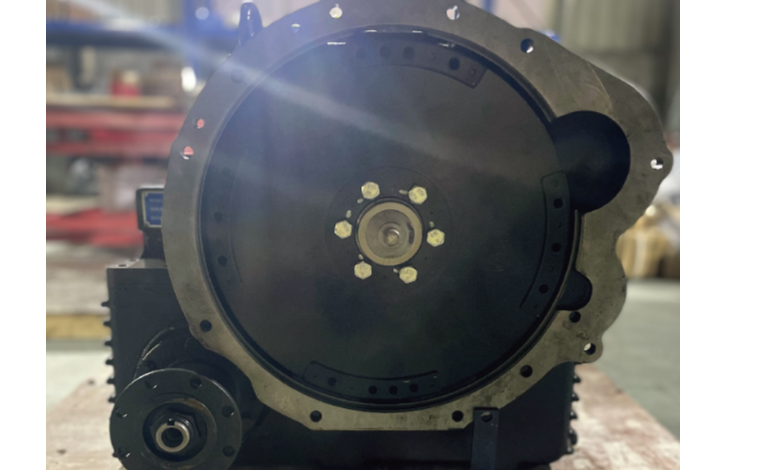

Quality mature components ensure durable performance

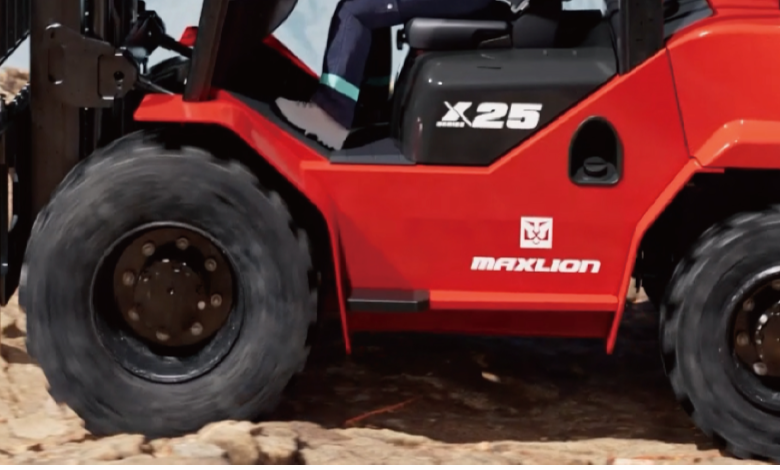

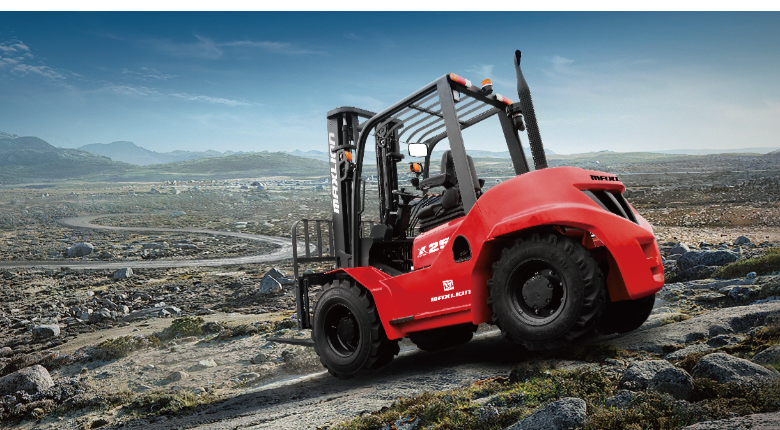

Superb off-road capability, Max Gradeability(Laden): 45%-50%

Ground clearance 220mm

Patented self-designed axle, compact size and wide turning angel

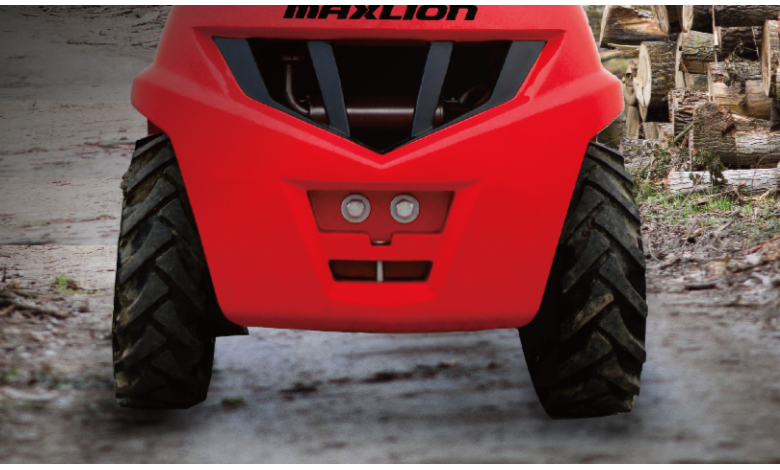

Modern design for an appealing appearance.

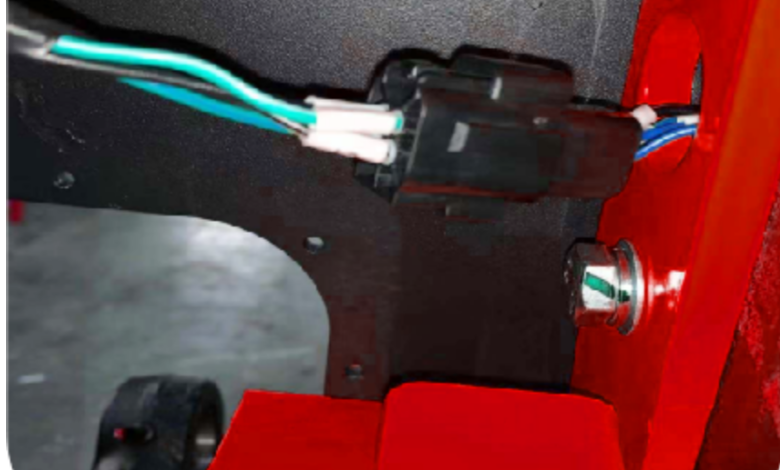

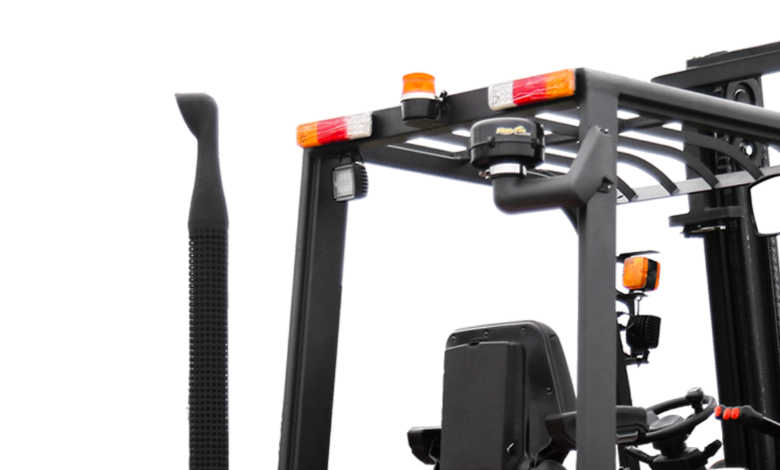

LED lights, USB port, Waterproof connectors

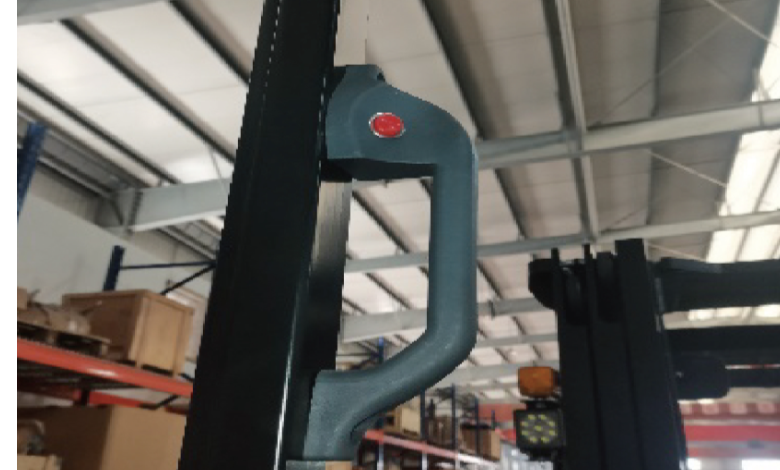

Rear hand grip wiht horn

Application

Forestry wood & Agriculture

Construction & Mining

Livestock Industry

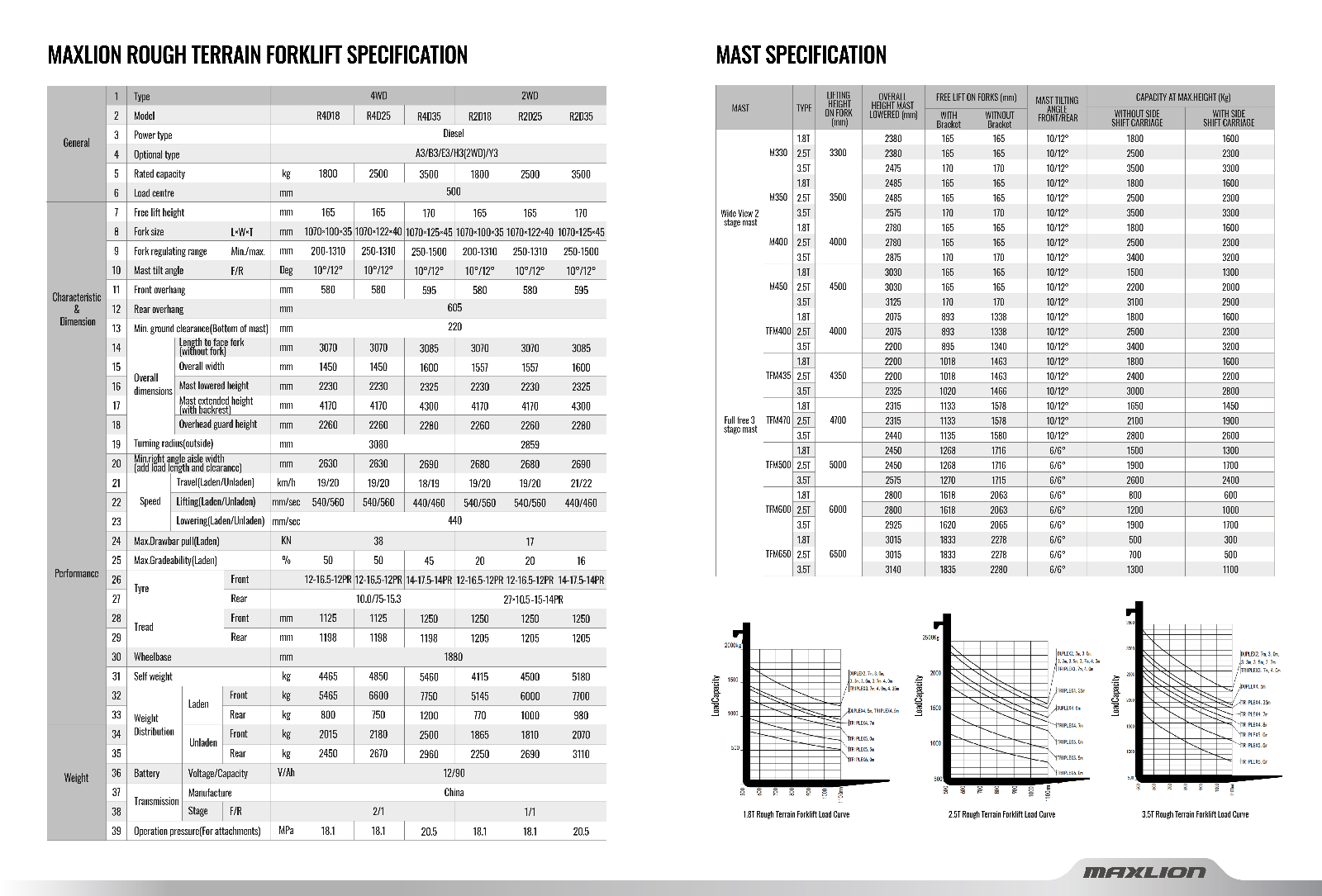

Tech Specs

Characteristics

Model			R2D18	R2D25	R2D35
Power type			Diesel
Optional engine			YANMAR 98、MITSUBISHI S4S、LS L4CRV-T6 EUV、XINCHAI 4D29X41-030、Kubota V2403
Rated capacity			1800kg	2500kg	3500kg
Load centre			500mm
Lift height			3000mm
Overall Dimension	Length(without fork)		3070mm	3070mm	3085mm
Width			1557mm	1557mm	1600mm
Height when mast lowered			2230mm	2230mm	2325mm
Height to safeguard			2260mm	2260mm	2280mm
Speed	Travel(Unladen/Laden)	km/h	20/19	20/19	22/21
Lifting(Unladen/Laden)	mm/sec		560/540	560/540	460/440
