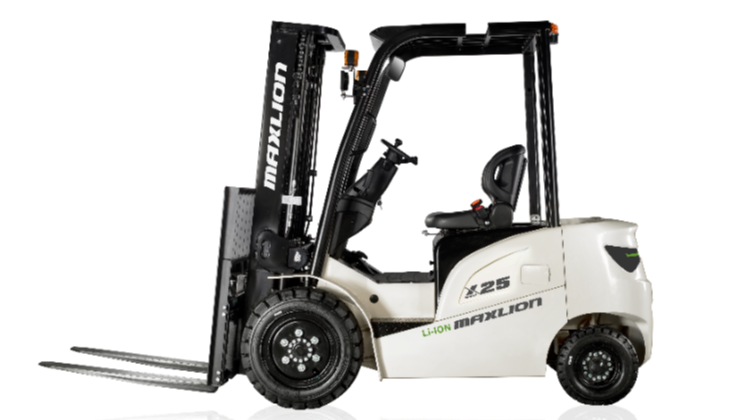

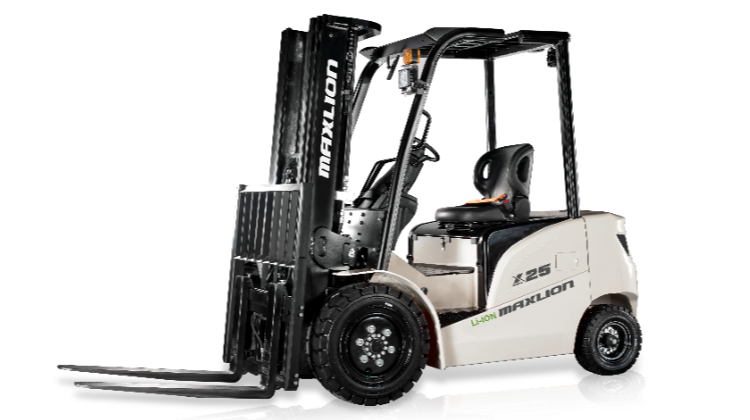

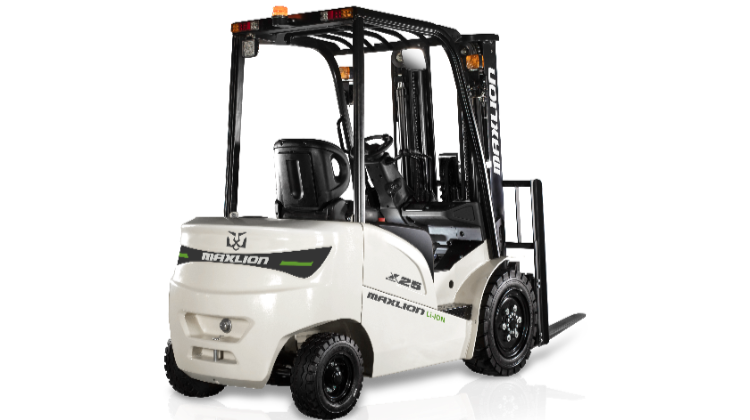

X Series New Li-ion Electric Forklift 1.5-3.8T

Maxlion's "X" Series Forklift is designed for the driver. Maxlion engineers have focused on improving the comfort and safety for new series forklifts, with lower noise levels, less vibration, more safety, and every small detail carefully designed prepared for the driver.

Simple, Solid, Durable

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

On-site show

Equipment Application

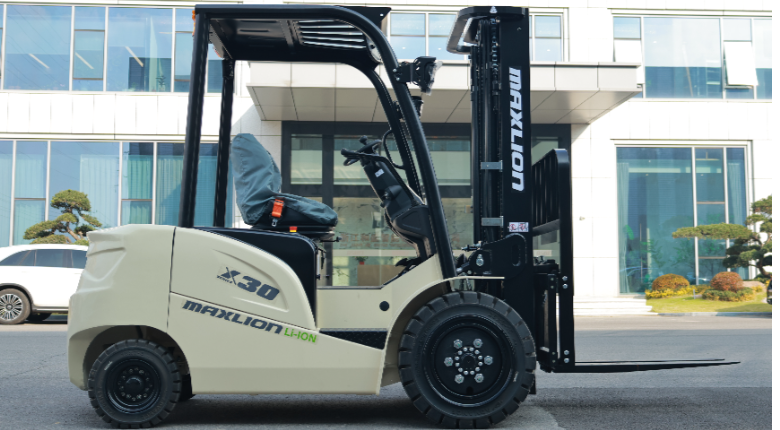

"Maxlion New Lithium-ion Forklift"

Features

Simple, Solid, Durable Ergonomic Design for Comfort Premium Exterior Design

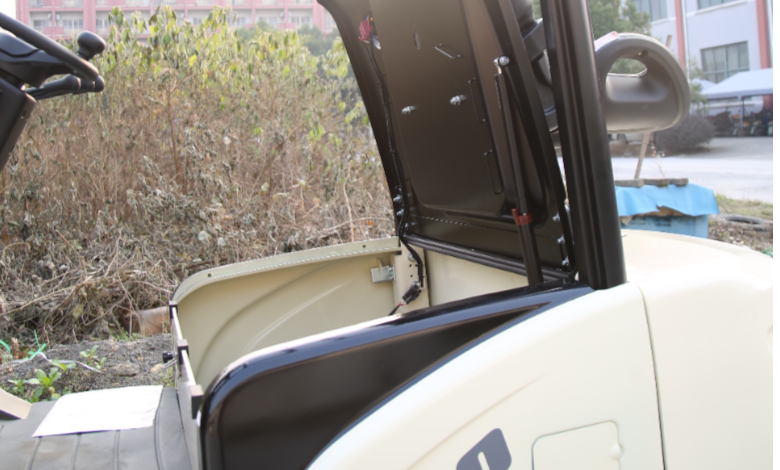

Simple operation and easy maintenance

Enhanced durability with die-cast iron side panels and injection-molded instrument cover.

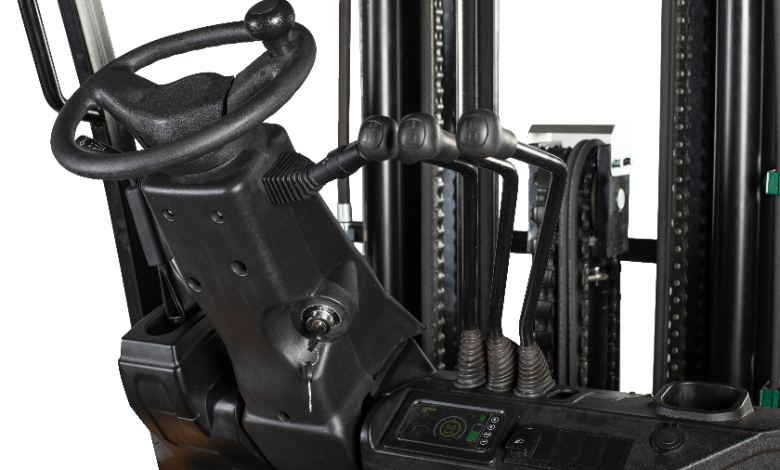

Provides a raised steering wheel and operating handle.

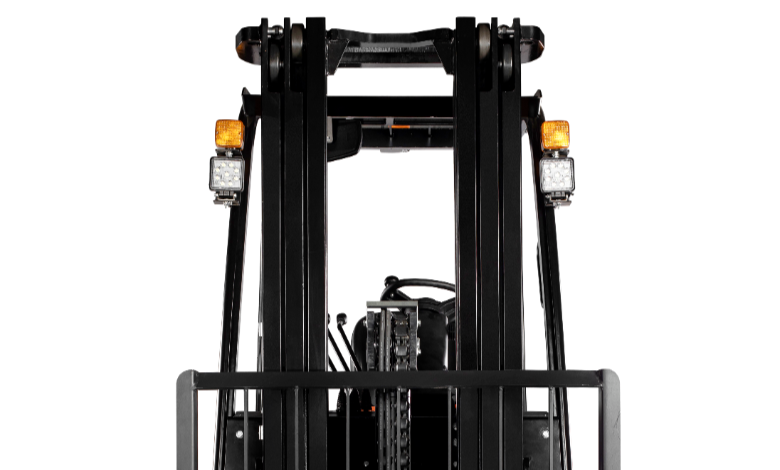

Optimal visibility of 3-stage mast.

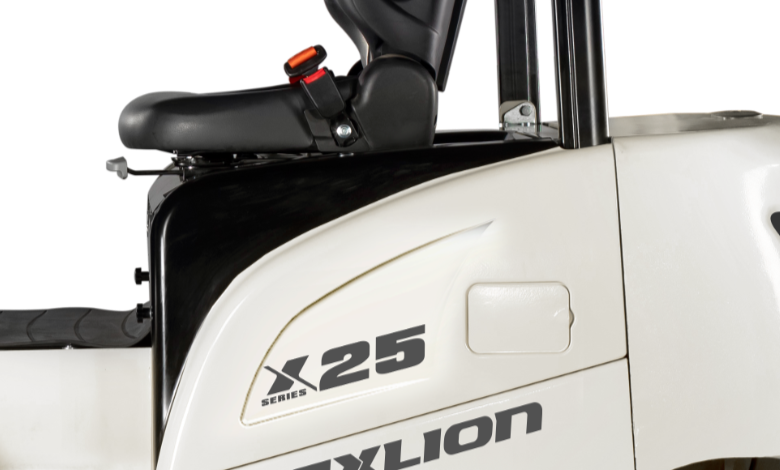

Modern design for an appealing appearance.

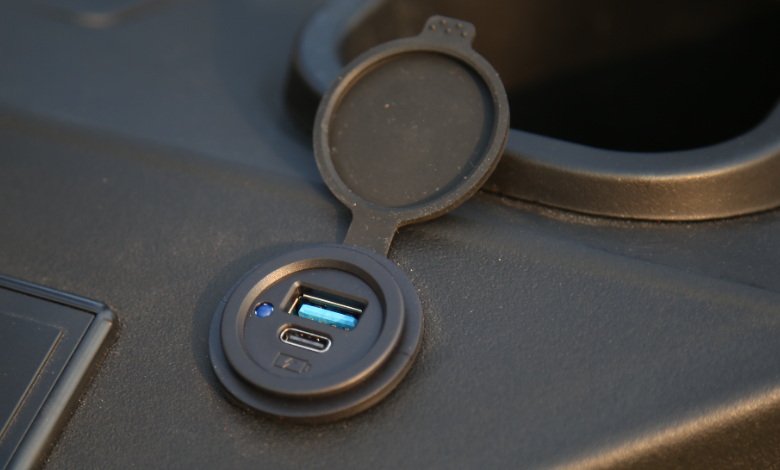

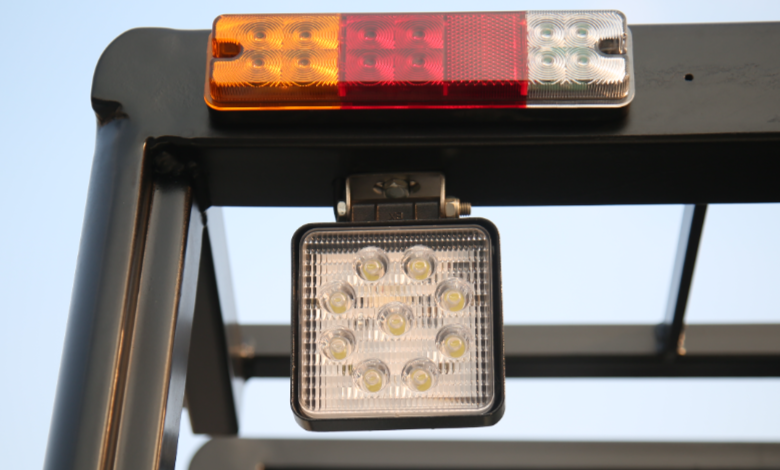

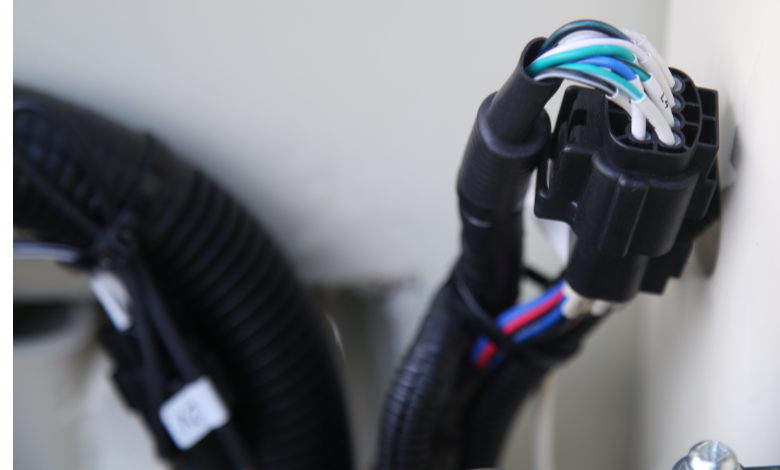

LED lights, USB port, Waterproof connectors

Application

Retail & Wholesale

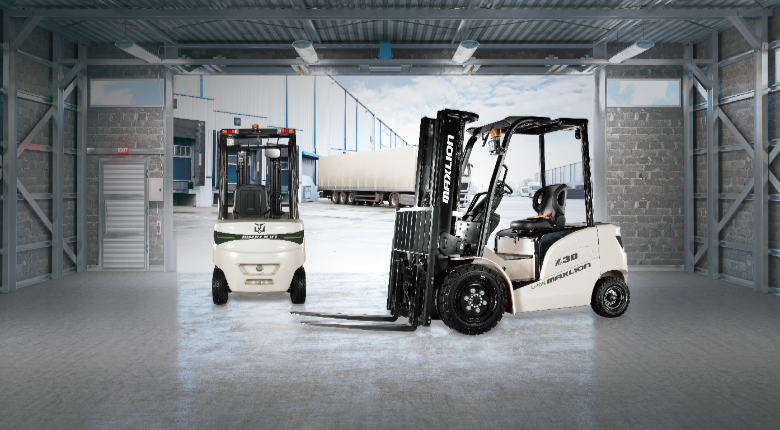

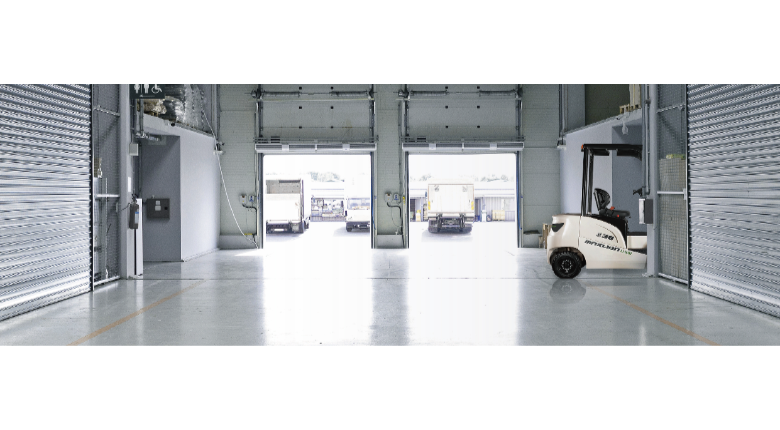

Warehousing & Logistics

Manufacturing

Food Beverage

Forklift Container Unloading

Tech Specs

Characteristics

Model			FB15-EH	FB18-EH	FB20-EH	FB25-EH	FB30-EH	FB35-EH	FB38-EH
Power type			Electric
Optional battery			76.8V/205-350Ah 80V/205-460Ah
Rated capacity			1500kg	1800kg	2000kg	2500kg	3000kg	3500kg	3800kg
Load centre			500mm
Min.turning radius			1924mm	1924mm	1952mm	2165mm	2270mm	2270mm	2300mm
Lift height			3000mm
Overall Dimension	Length(without fork)		2195mm	2195mm	2224mm	2485mm	2590mm	2607mm	2639mm
Width			1126mm	1126mm	1126mm	1150mm	1210mm	1210mm	1210mm
Height when mast lowered			2020mm	2020mm	2020mm	2010mm	2075mm	2150mm	2150mm
Height to safeguard			2110mm	2110mm	2110mm	2180mm	2205mm	2205mm	2205mm
Speed	Travel(Unladen/Laden)	km/h	16/15	16/15	16/15	18/17	18/17	18/17	18/16
Lifting(Unladen/Laden)		mm/sec	460/380	460/350	460/330	460/350	460/350	400/320	400/300
